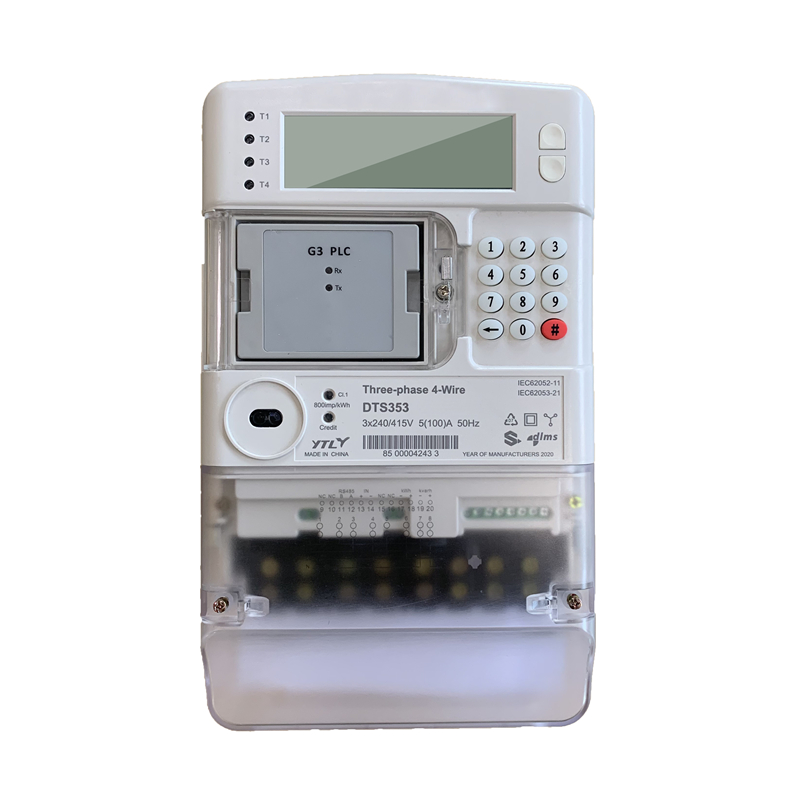

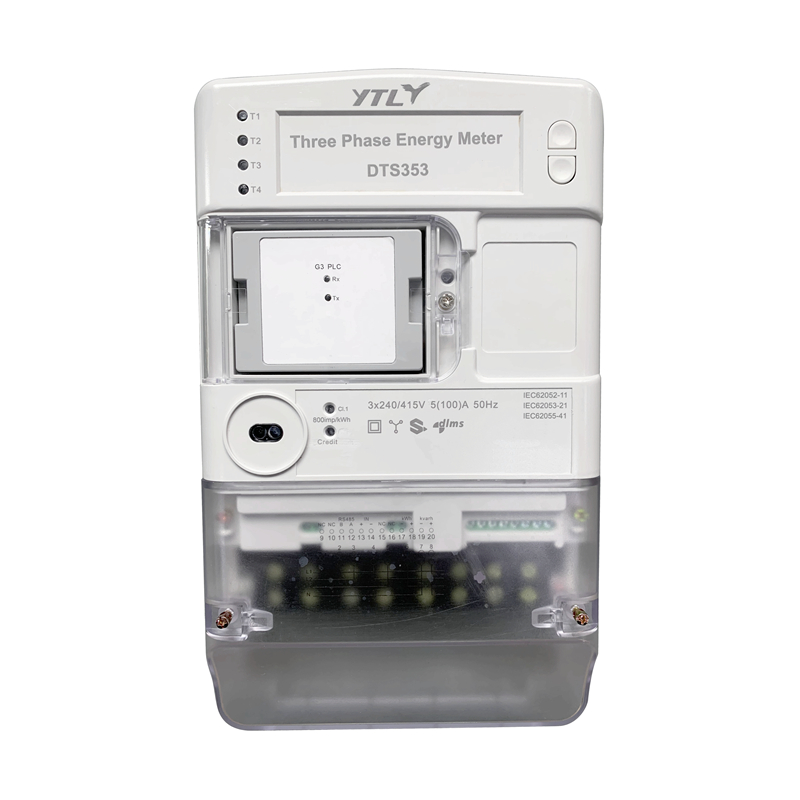

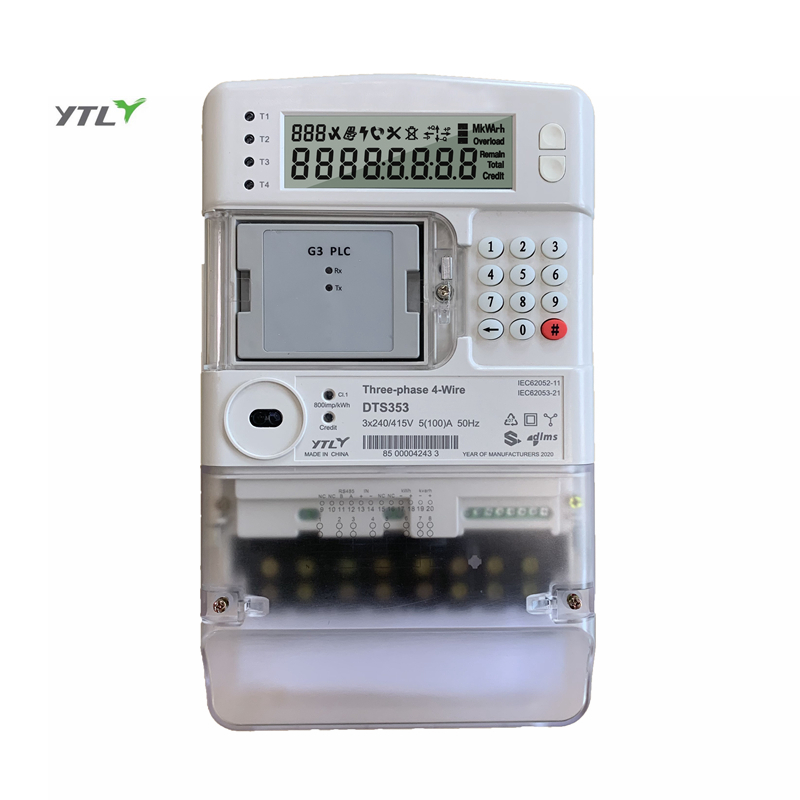

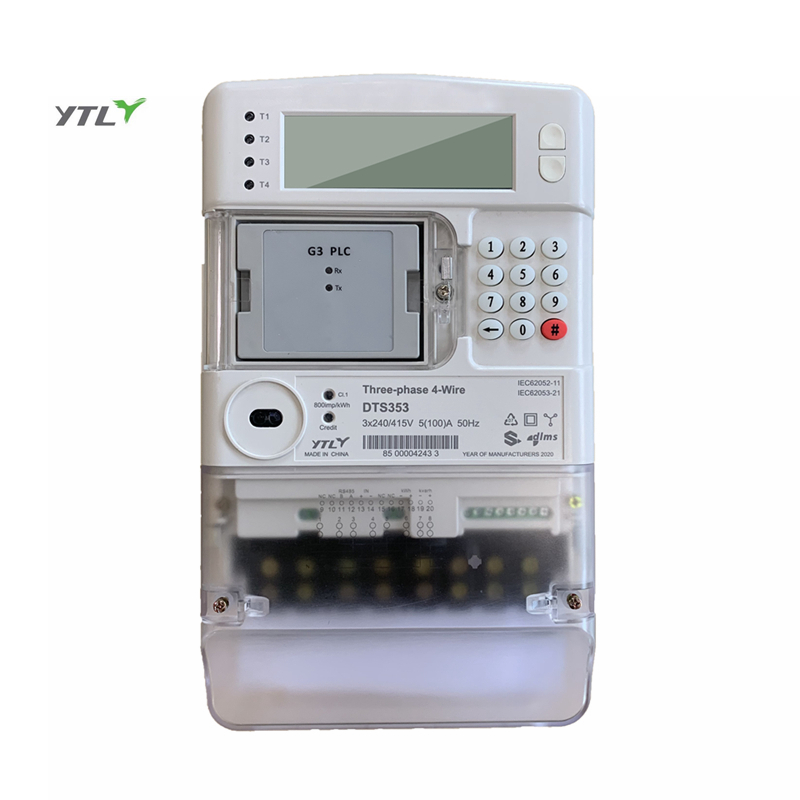

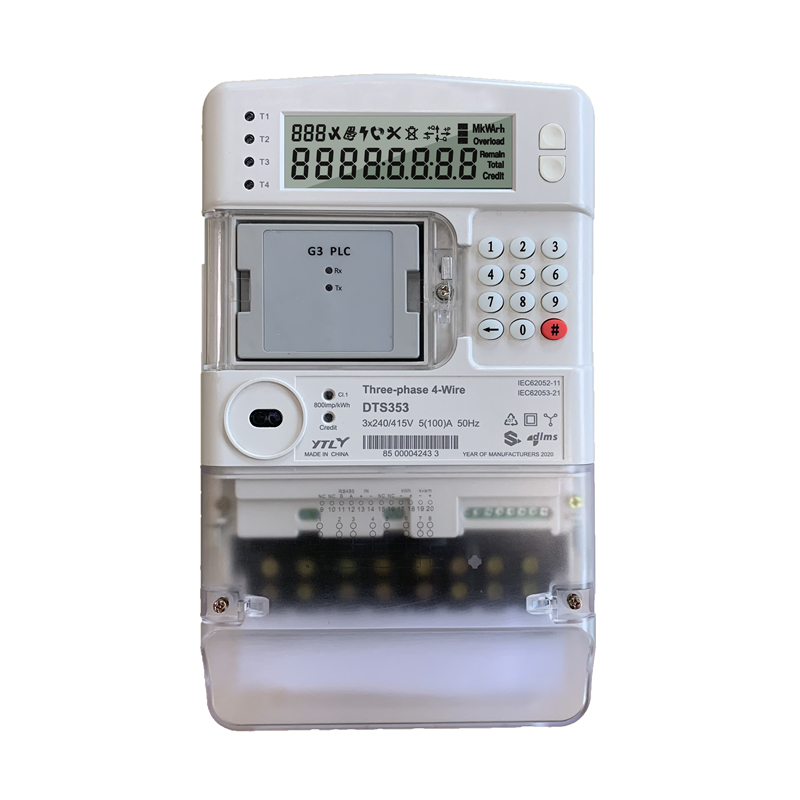

Industry 3*380V 3*100A Three Phase STS Electricity Meter

D522006

Industry 3380V 3100A Three Phase STS Electricity Meter

YTL prepaid meter 5/100A Split Type 3P Four Wires Smart Token kWh Token Keypad

Power Indicator: It will indicate when the instrument has power, the instrument power indicator will indicate.
Power Indicator: It will indicate the size of the working current of the meter, and the meter current indicator will indicate.kWh indicator: It will indicate when the power is on, the flashing frequency represents the size of the power consumption, 1000imp/kWh.

Technical Parameters

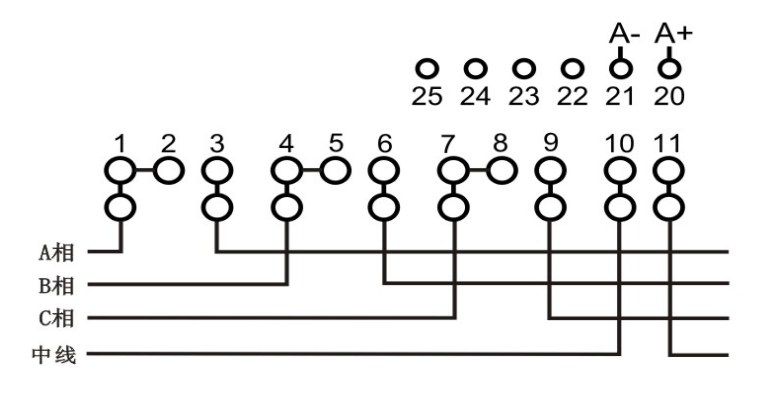

Connectlon Diagram
Meter Dimensions
Impulse Connection
det6

Length:220mm

Width 169.5mm

Depth 63.3mm
Must be strictly in accordance with the voltage level indicated on the label access voltage, if the access voltage is greater than 1.5 times the rated voltage, even for a short period of time will cause the meter to be permanently smooth bad.
The terminals must be tightened during installation, and the meter must be hung firmly on a strong, fire-resistant, non-vibrating screen. The meter is better displayed when viewed from below, so it should be installed vertically, with a height of 1.8 meters as the best.
After wiring, the end cover will be sealed.
