Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China YTL Single-PhaseTwo-Wire Din-rail Meter D114081 Suppliers and YTL Single-PhaseTwo-Wire Din-rail Meter D114081 Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.
YTL Single-PhaseTwo-Wire Din-rail Meter D114081 Suppliers

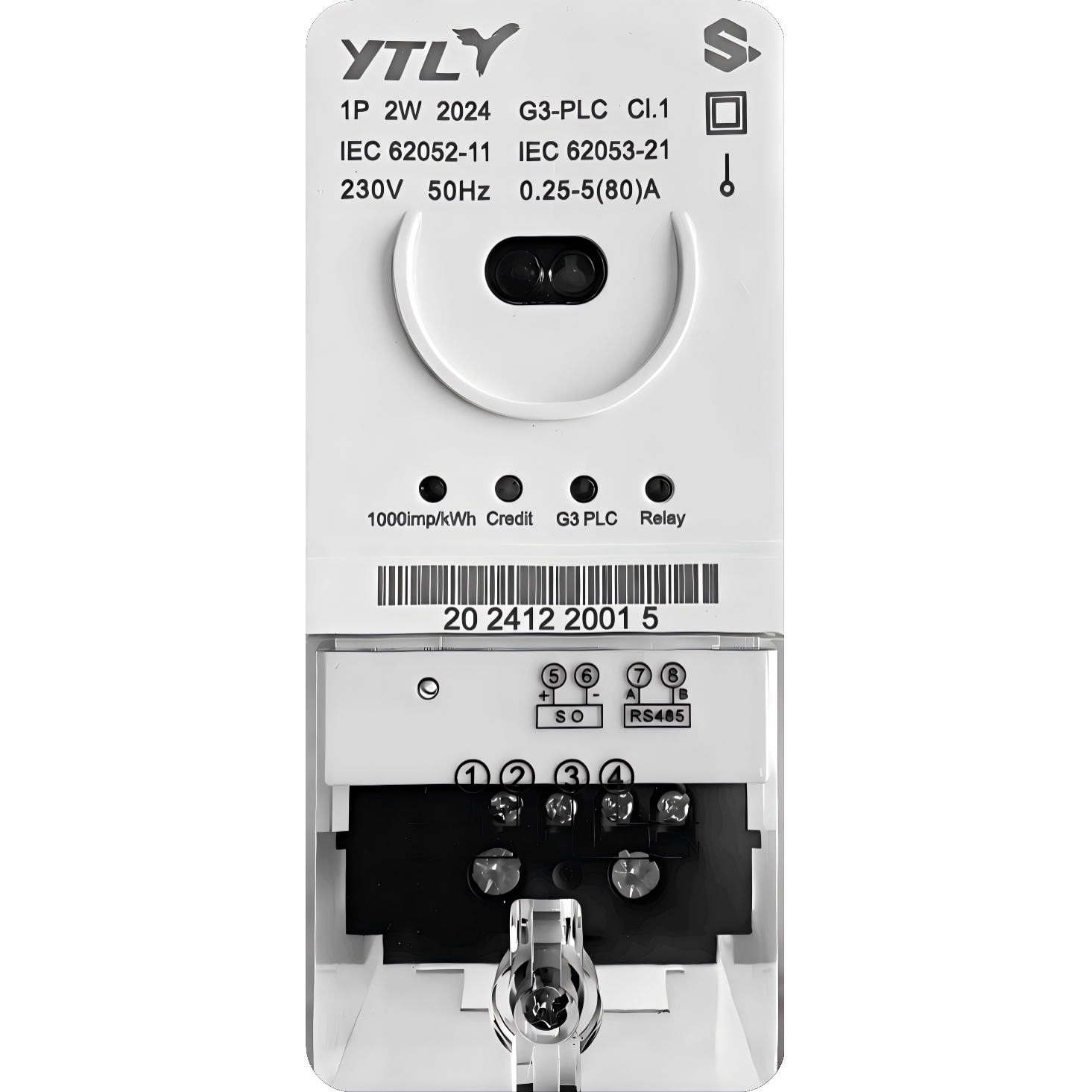

YTL Single-PhaseTwo-Wire Din-rail Meter D114081
- parameter
- Features

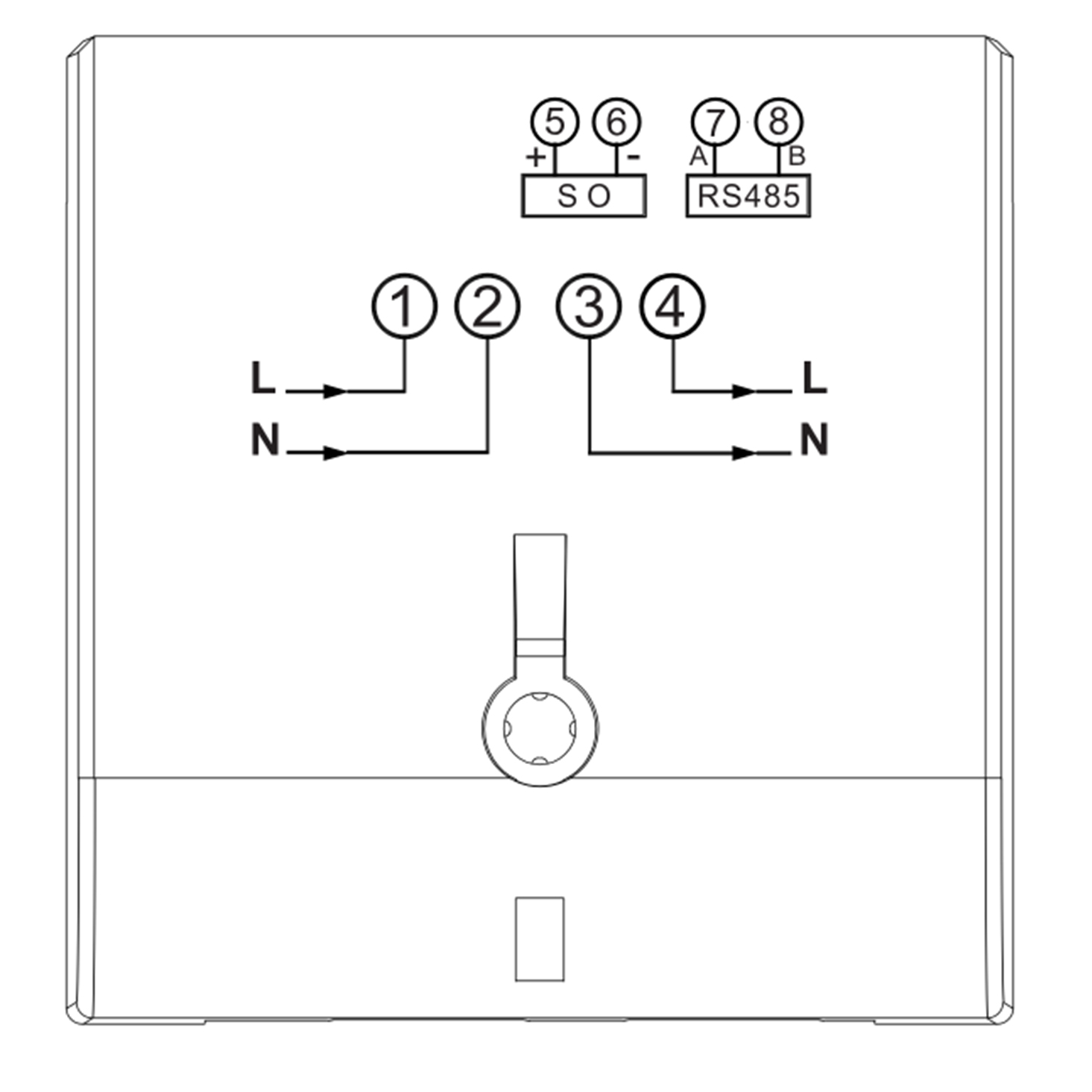

- Connection Diagram

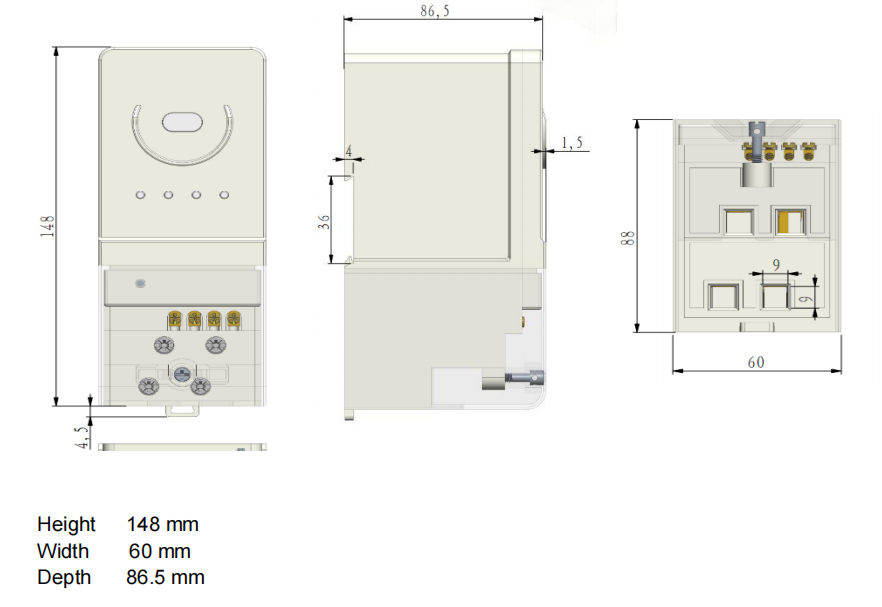

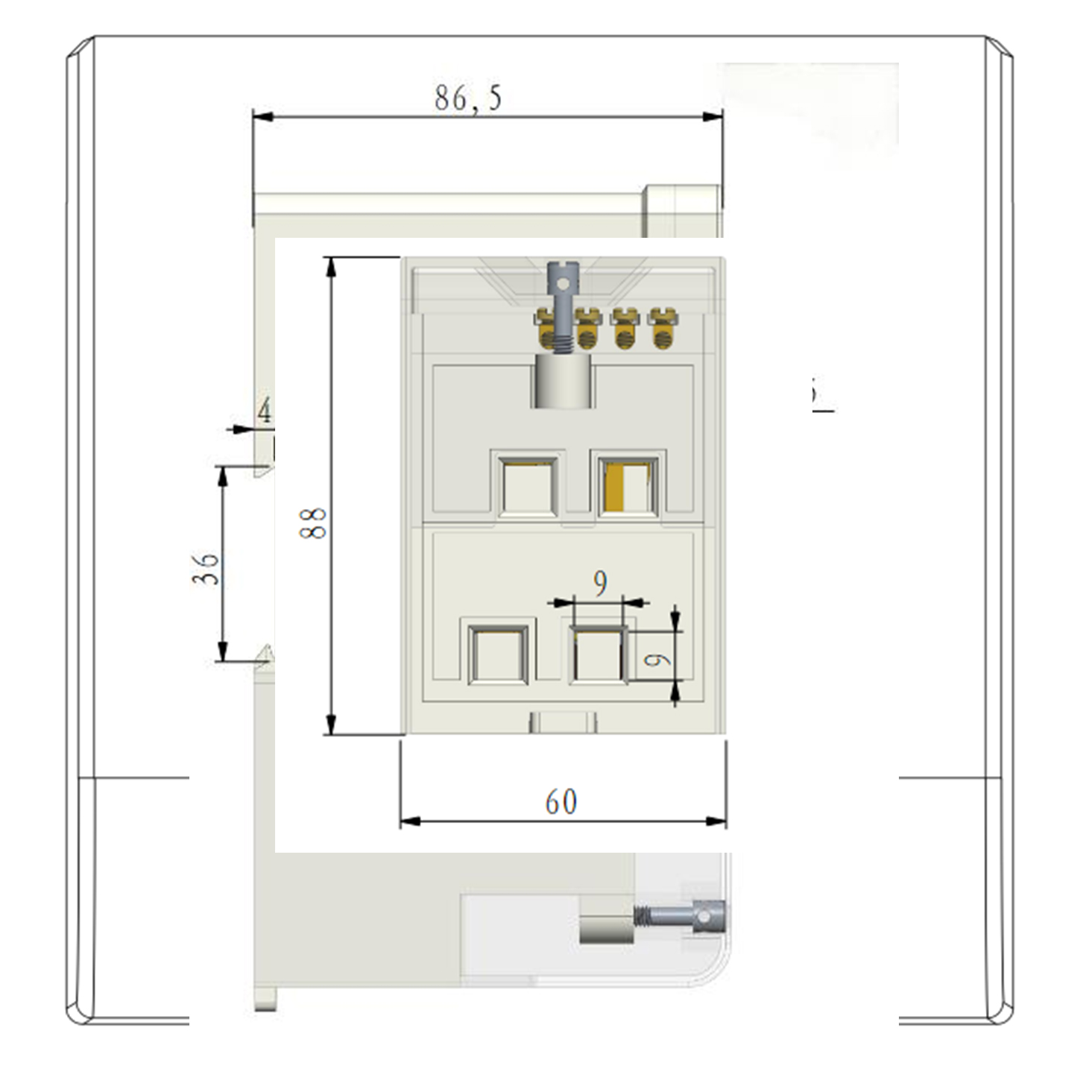

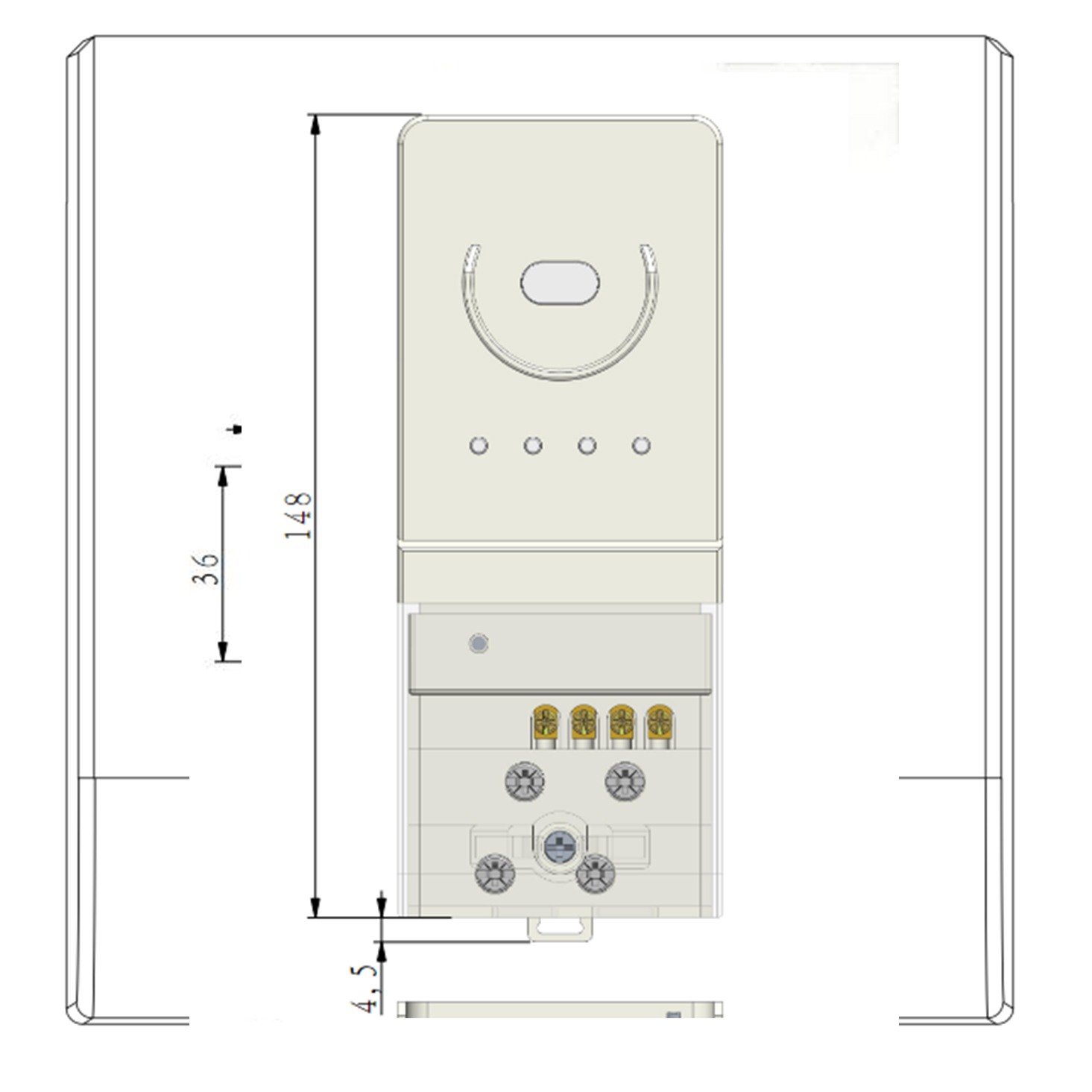

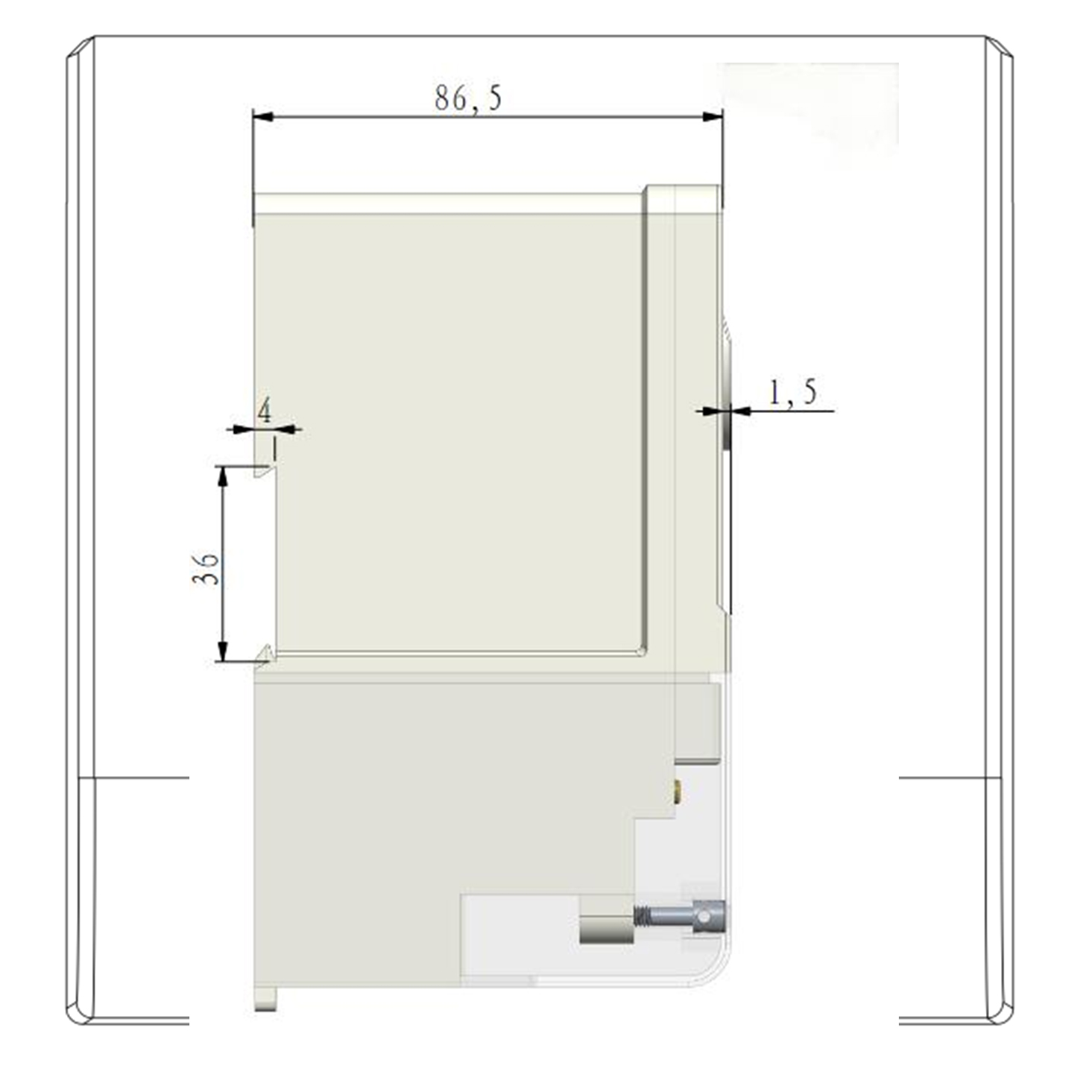

- Meter Dimensions
-
Voltage 230V Current 5(80）A Accuracy class Active class1.0 Frequency 50Hz Impulse constant 1000imp/kWh Display: Without LCDPower consumption <10VA/2WStarting current 0.004IbTemperature range -20～75℃Average humidity value of year 75% Maximal value 95% -
With with G3 PLC communication
- Maximum current is up to 80A.
- with buzzer inside, it will beep when low credit for 5 seconds, and you could press any key to
turn it off. Also you could configure to enable or disable this buzzer function by IR communication.
- Support load ground connection, switch detection, influence of external magnetic field,
abnormal voltage record.
Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in
the current month, MD of last 1 month, MD of last 2 month, the absolute value of total active
energy, the absolute value of total active tariff energy, total input energy of the current month, total
input energy of last 5 month, total output energy of the current month, total output energy of last 5
month, and total reactive energy.
-
-
