YTL Single-Phase Two-Wire Energy Meter D12A086 Suppliers

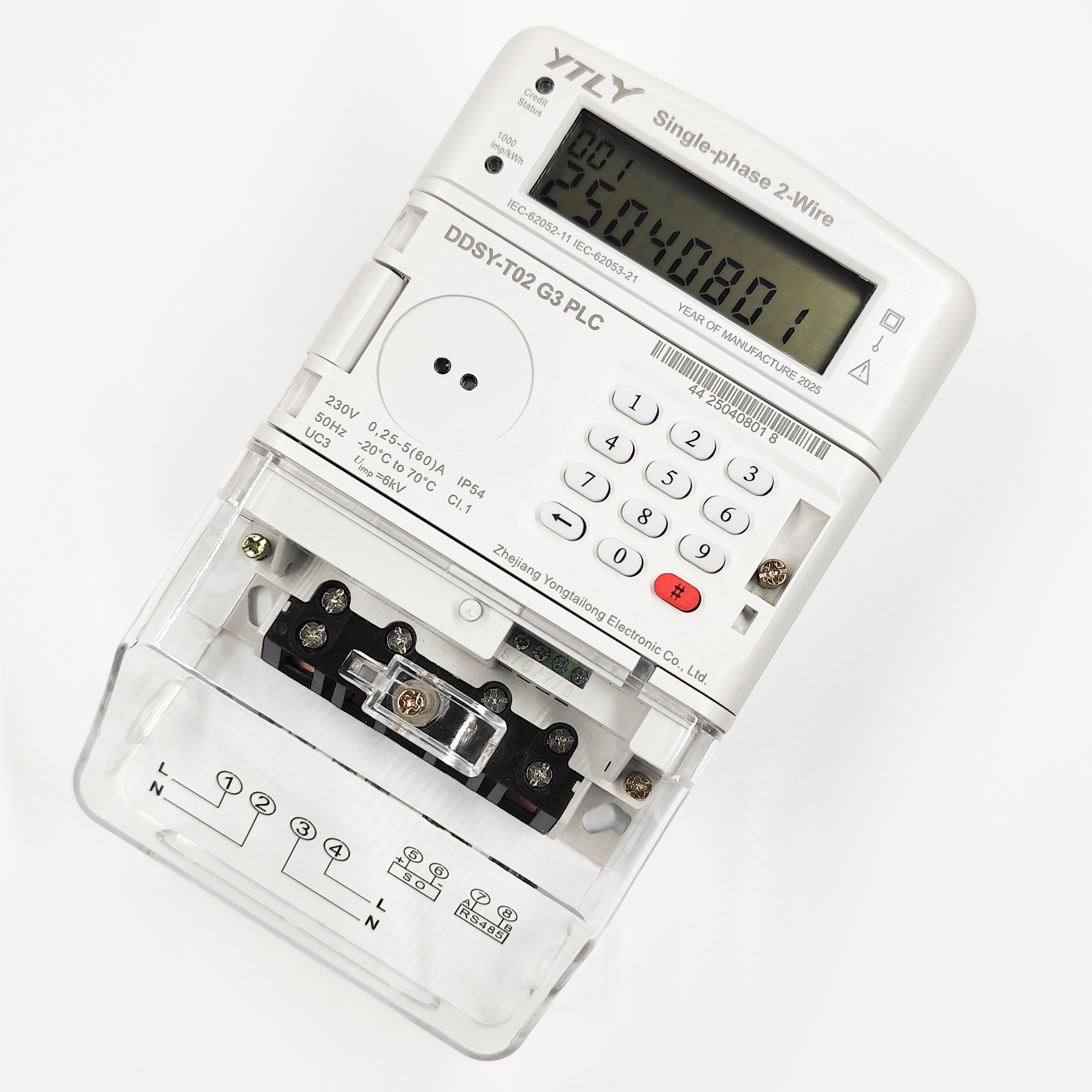

YTL Single-Phase Two-Wire Energy Meter D12A086
It is a Smart STS Single-phase meter, with PLC communication.
Be able to measure in STS mode, currency mode, and also post-paid (traditional) mode.
Data will besent to master station for managemen
- parameter
- Features

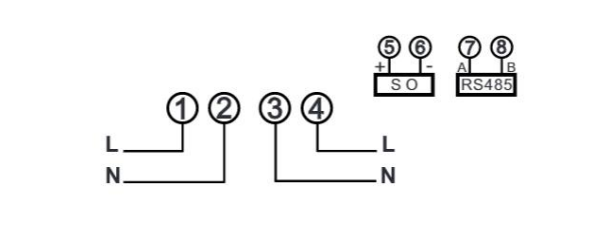

- Connection Diagram

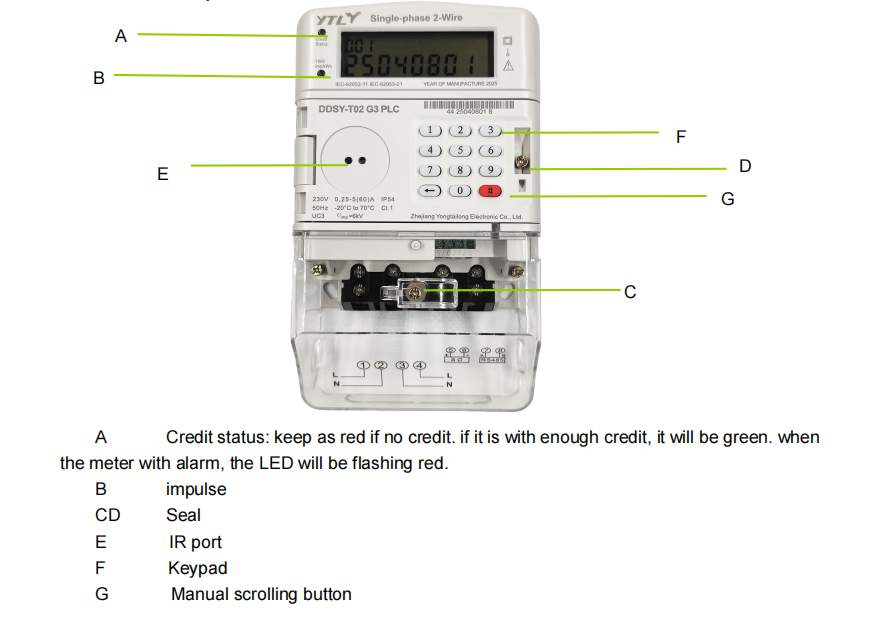

- Meter Description
-
voltage:
230V
Current:
5(60) A
Accuracy class:
1.0 for active energy, 2.0 for reactive energy
Communication protocol:
DLMS/COSEM(IEC62056)
Frequency:
50Hz
Impulse constant:
1000imp/kWh
Power consumption:
<10VA/2W
Starting current:
40mA
Working temperature:
-25℃~70℃
Limit working temperature:
-30℃~80℃
-
nti-tampering
Support bypass detection, open cover detection, Magnetic disturbance detection, Current
unbalance detection, Phase reversal detection etc. Two relays on phase wire&Neutral wire, can
disconnect the 2 wires when tamper happens.
Tariff
Divide into weekday timetable and weekend timetable, with 8 time period and 8 tariffs. Every
timetable has a backup table for remote updating of backup timetable and configure the switching
time. Meter will automatically switch the tariff table at the switching time.
Event
Open cover, magnetic field, load ground connection, reserve current, over-voltage, low-voltage,
low-frequency, overload, power-fail, low remaining power, and token record etc. Support 225
events
Communication
Meter support PLC communication.
.
Measurement
Meter measures voltage, current, active power, reactive power, frequency, power factor, MD in the
current month, MD of last 1 month, MD of last 2 month, the absolute value of total active energy,
the absolute value of total active tariff energy, total input energy of the current month, total input
energy of last 6-12 month, total output energy of the current month, total output energy of last 6-12
month, and total reactive energy.
Mode
Meter has 3 operation modes: STS token mode, currency prepaid mode and post-paid (traditional)
mode, which can be switched.
And the currency mode can be divided into tariff mode and step price mode. Modes can be2
configured through communication.
STS operation
Enter 20-digit token via keypad of meter or IHD, the meter display will be green Picture 1 if
recharging is successful, will be red Picture 2 if is failed.
-
-
