LS3P63I Three-phase smart power switch uses advanced electronic technology and intelligent control algorithms to achieve precise and efficient control of load devices, integrating multiple IoT communication methods to improve the real-time management. The intelligent switch has a wide range of applications in areas such as homes, offices, public buildings, industrial production, energy management, modern agriculture, etc., and is highly favored by the market for its safety and full functionality.
Three phase smart power switch with Wifi/4G communication Suppliers
Home / Products / energy saving / smart power switch / Three phase smart power switch with Wifi/4G communication
LS3P63I
Contact Us
SPEC Download
Three phase smart power switch with Wifi/4G communication
- Type
- Functions
- Technical Parameters
- Connection Diagram

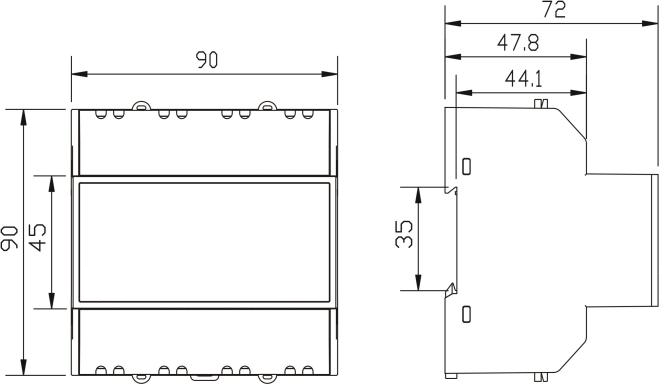

- Meter Dimensions
-
Type LS1P63I
LS3P63I
Communication Single phase smart power switch Three phase smart power switch -
Integrated multiple communication methods, including Bluetooth, RS485, WiFi/4G (choose one) to achieve local and remote data transmission and control, suitable for a variety of scenarios.
Remotely read real-time data such as voltage, current, power, power factor, harmonics, switch status, and external sensor data.
Built-in 80A high-performance relay supports remote control, power control, time control; supports remote switch control and local switch control.
I/O input: supports switch quantity and AC230V input. When a short circuit signal or AC230V signal is detected, the relay is disconnected; it is necessary to close the relay through remote or local operation.
(Digital input signal can be short-circuited or disconnected by default)
I/O output: 5A relay switch output
Mbus bus communication can expand the monitoring and collection of data from sensors such as temperature, water level, smoke, and pressure
Rich safety alarm functions, including over/under voltage, overload, high temperature alarms with customizable thresholds; LED alarm indicators and communication reporting
Equipped with timing switch function, records the operating time of load devices
Supports remote upgrades -
Voltage AC 3x230/400V Current 3x63A Frequency 50-60Hz Temperature range -40～70℃ Degree of protection IP30 Altitude ≤ 2000 meters -
-
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.png?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
