DC022-100m (1) direct DC energy meters are specially designed for DC EV chargers, photovoltaic power station, energy storage system and other DC metering scenarios. The energy meter adopts the integrated design of shunt and energy meter. In addition, the energy meter adopts a guide rail installation mode, which has the characteristics of small size and convenient installation. The meter supports RS485 communication and is compatible with a variety of protocols. Excellent performance in the overall measurement accuracy and functional diversity, to meet the MID, Eichrecht and other certification and regulatory requirements, is the ideal choice to meet the needs of high-precision DC metering.

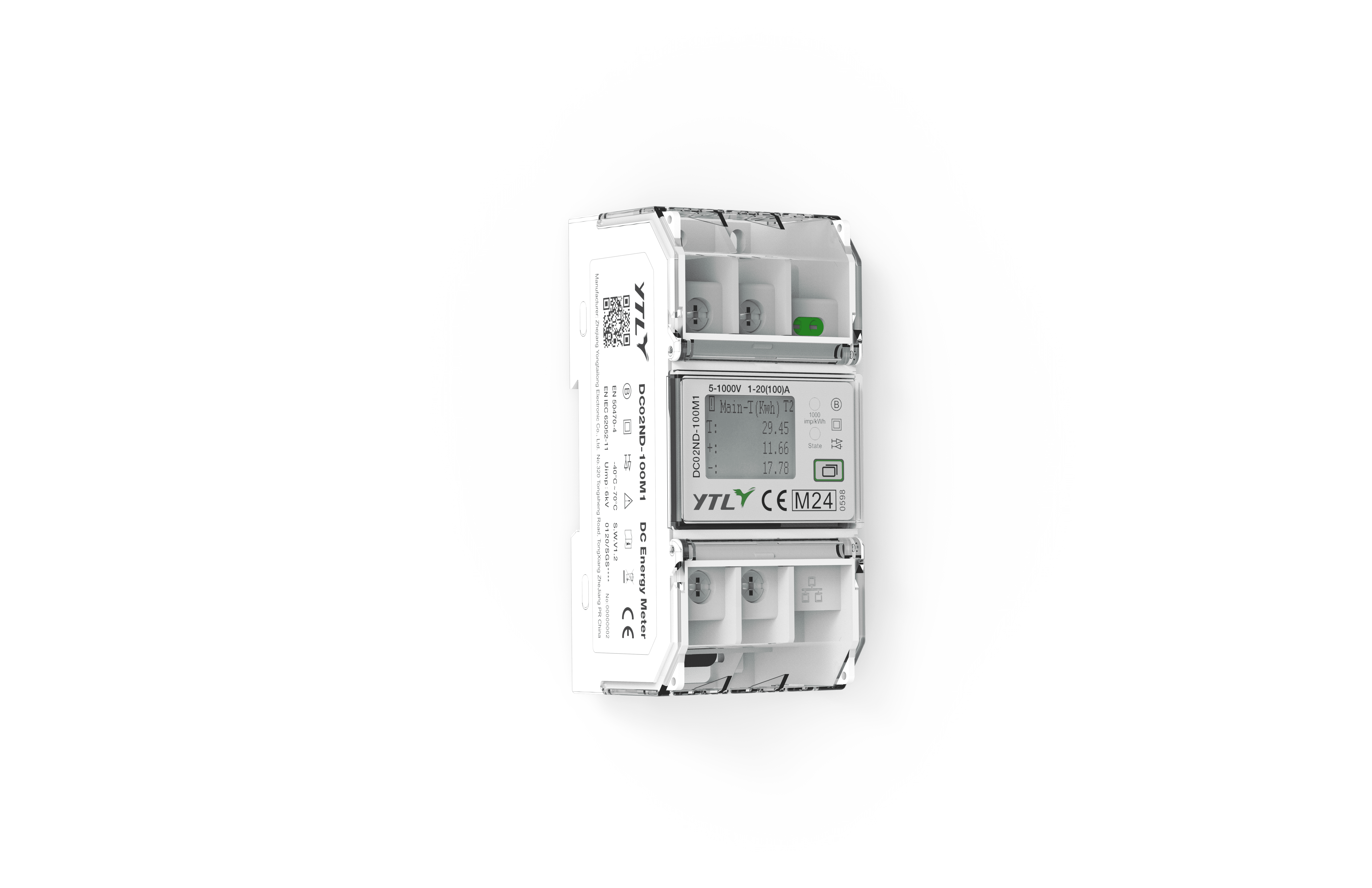

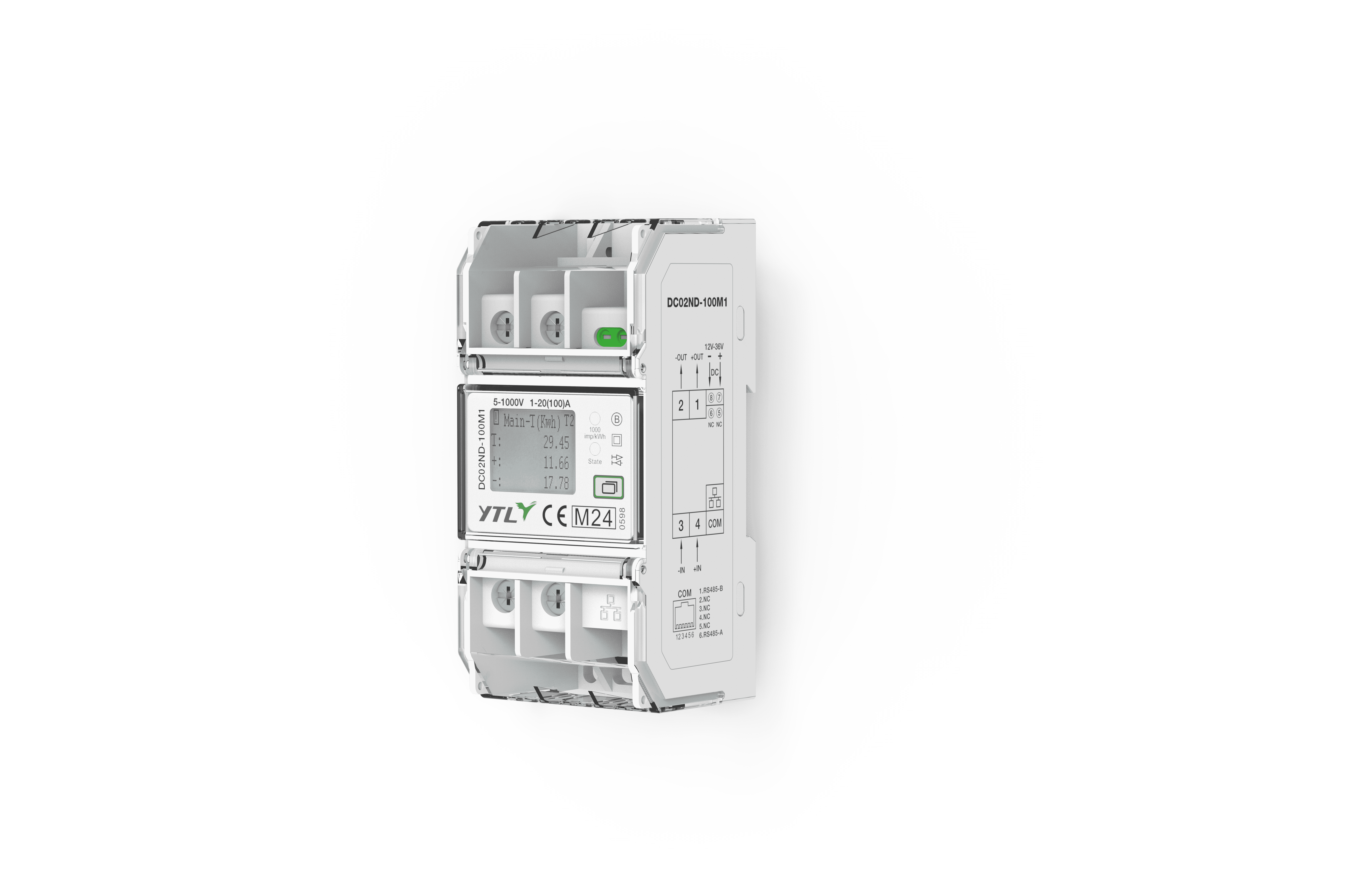

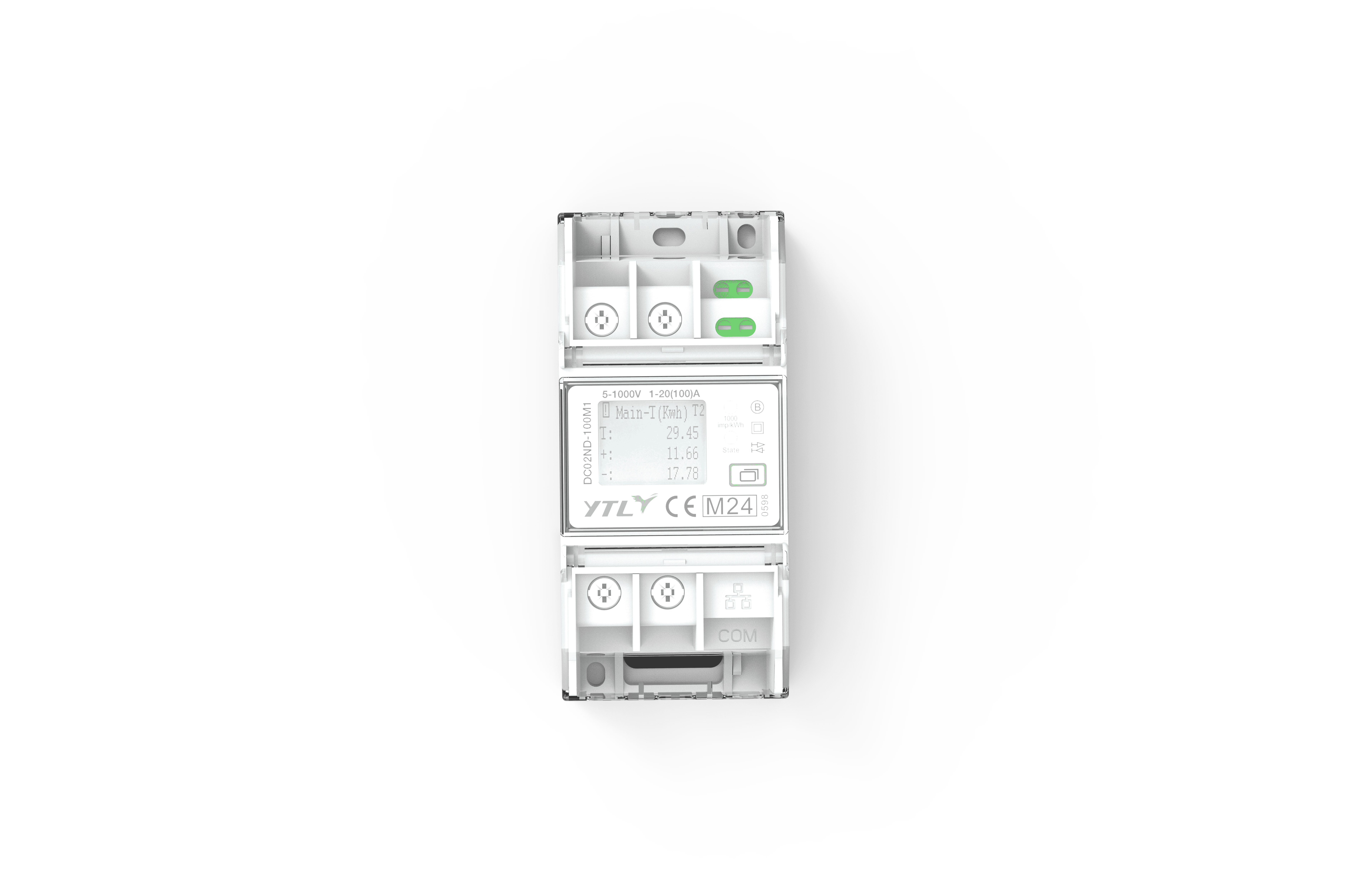

YTL DC02ND-100M(1) direct DC energy meters Suppliers
DC02ND 100A
Contact Us
SPEC Download
YTL DC02ND-100M(1) direct DC energy meters
- Measurements
- Product Description
- Meter Dimensions
- Diagram for installation
-
Rated voltage 100V-1000V Maximum current
（Imax）100A Basic current
（Ib）20A Minimum current
（Imin）1A Auxiliary power supply 12~36V DC or 115-250V AC（choose one of two） Measurement accuracy 1.0 Power comsumption ≤2W（without communication） Protection class Level II Rated pulse voltage 6kV Operating temperature -40℃~70℃ Maximum humidity ≤95% Altitude ＜2000M Standards IEC 62052-11：2020
IEC 62052-31：2015
IEC 62053-41：2021
JJF 1779-2019
GBT 33708-2017
-
l Measurement functions: forward and reverse measurement; Supports dual circuit measurement
l Accuracy class 1.0
l Multi-tariffs, multi-periods: 4 tariffs and 8 periods by default.
l Flexible communication method: support RS485 communication, meet the Modbus protocol and DL/T645-2007 protocol; Support Ethernet communication
l LCD backlight display: display voltage, current, energy, power and other information; With automatic wheel display, the default interval is 5S
l Self-diagnosis, alarm and security functions
l With line loss energy compensation
l OCMF readings according to S.A.F.E standards
l Comply with German Eichrecht regulations
l With MID, CPA certification
-
-
l Take DC02ND-100M1 for an example:

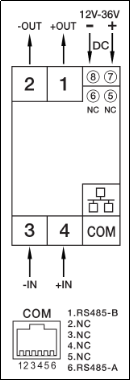

n Ports 1 and 2 are current output ports, terminal 1 is positive and terminal 2 is negative.
n Ports 3 and 4 are current input ports, terminal 4 is positive and terminal 3 is negative
n Ports 7 and 8 are DC auxiliary power ports
n In addition, the RS485 communication ports are marked on the wiring diagram.
Note: The current sampling interface cannot be connected only to the tail line without the shunt
