YTL Company DTS353C DIN Rail 3P 4 Model Electricity Meter MID

DTS353C

YTL Company DTS353C DIN Rail 3P 4 Model Electricity Meter MID

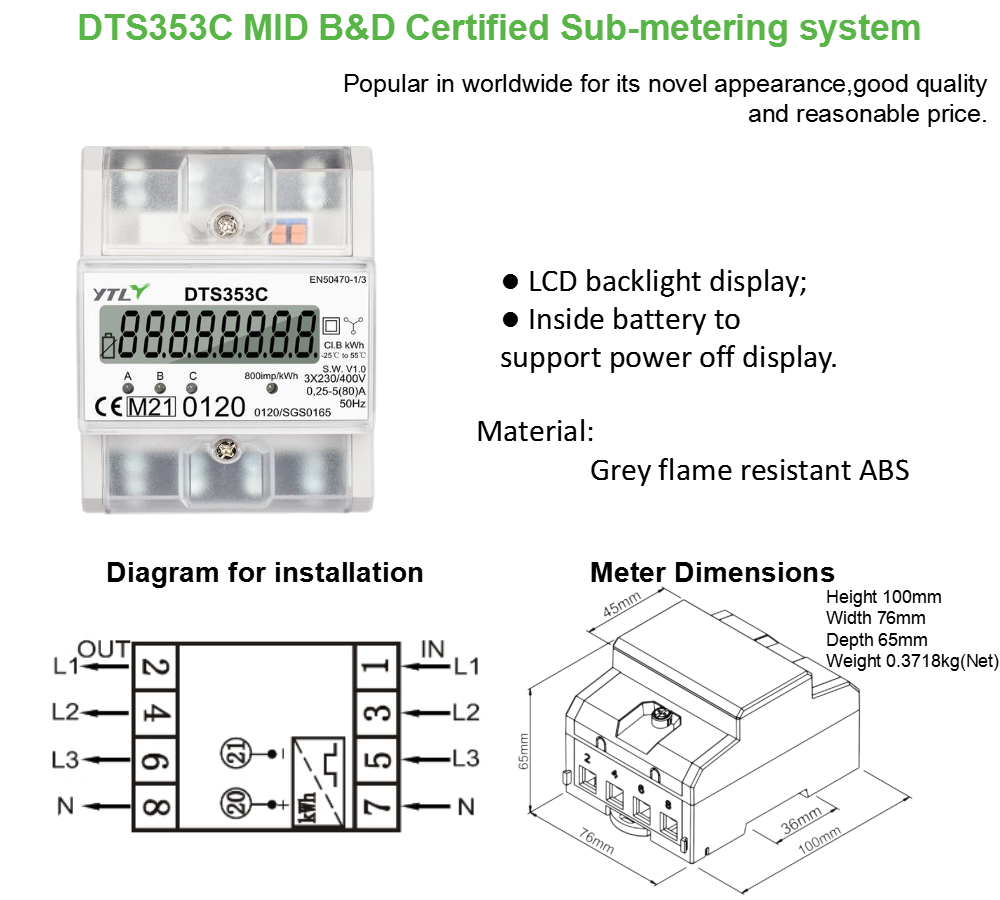

It is a simple three phase four module Din-Rail meter with transparent meter case, which is widely

used in Sub-metering system. This meter is very popular in worldwide for its novel appearance,

good quality and reasonable price.
YTL DTS353C 0.25-5(80)A DIN rail 3 Phase 4W MID Certified Electricity Pulse Meter

Technical Parameters
Description
det6

Features

● LCD backlight display;

● Inside battery to support power off display.
Technical Parameters

Voltage: 3*230/400V

Current: 3*5(80)A

Accuracy class: 1.0

Standard: IEC62052-11, IEC62053-21

Frequency: 50-60Hz

Impulse constant: 800imp/kWh

Display: LCD 6+2

Power consumption: ≤2W, 10VA

Starting current: 0.004Ib

Working Temperature: -20～55℃

Storage Temperature: -25～70℃

Working voltage: 0.9—1.1 Rated voltage

Utmost voltage: 0.8—1.15 Rated voltage

Average humidity value of year: ≤75%

Creep: Less than 1 impulse when the rated voltage is 115% or current loop without current.
