DEM3B302 Three Phase High Refresh MID Din Rail Meter Suppliers

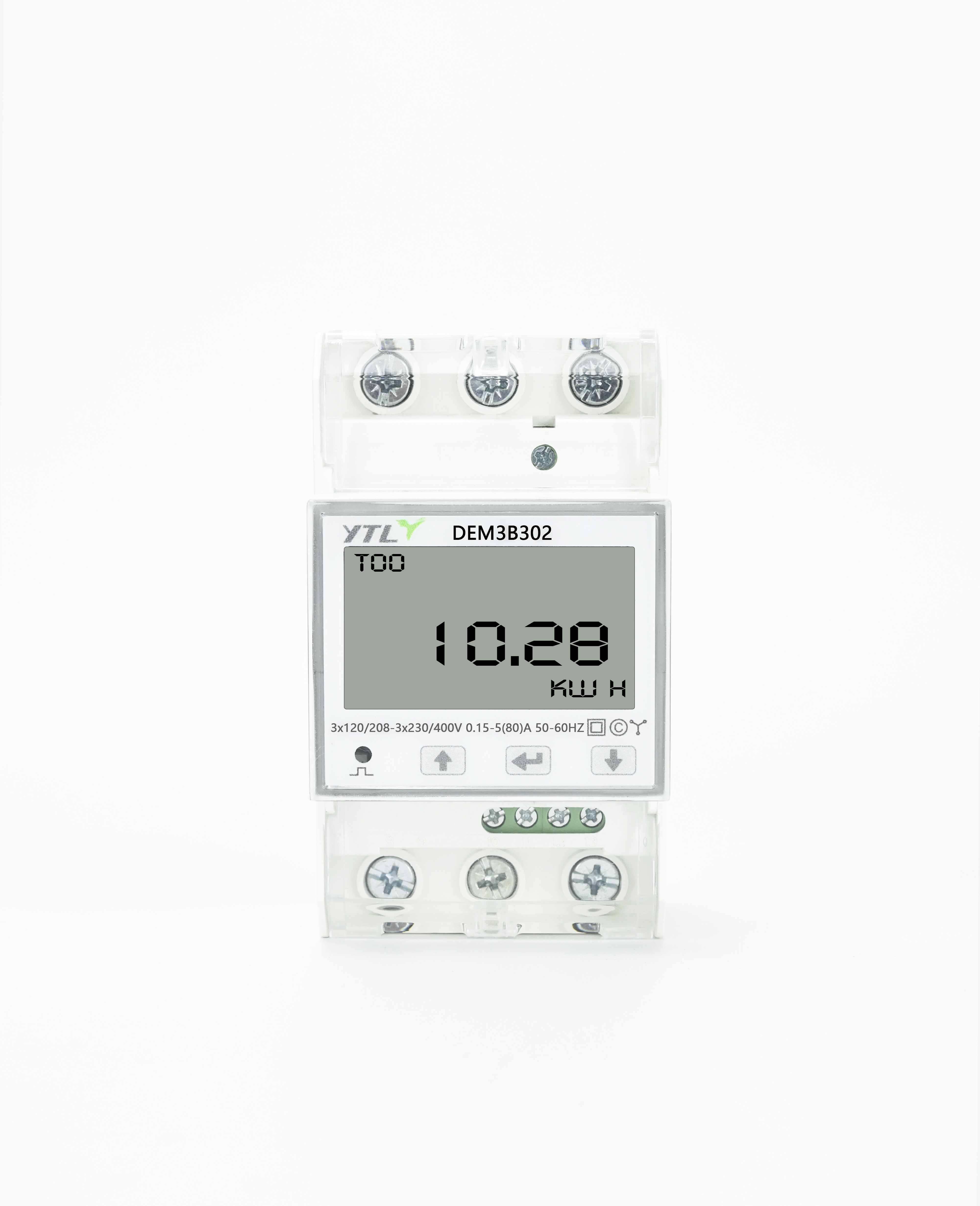

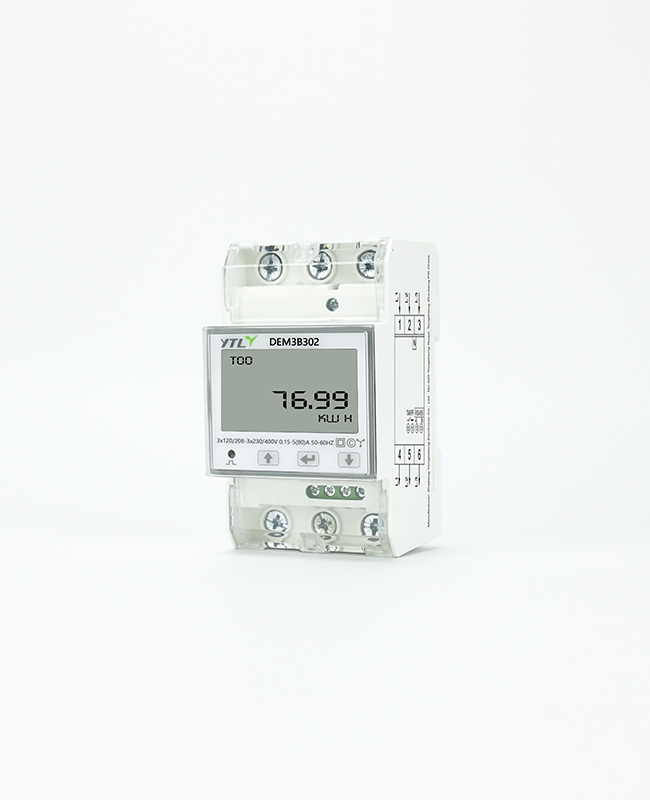

DEM3B302 Three Phase High Refresh MID Din Rail Meter
The DEM3B302 is a three-phase direct-type energy meter that employs a high-speed processing chip solution, specifically designed for high-speed metering scenarios such as photovoltaic systems, energy storage systems, and factory energy monitoring. Simultaneously, its wide operating temperature range of -40℃ to 70℃ meets the requirements for application in outdoor charging piles exposed directly to sunlight.
- Voltage input
- Current input
- Communication parameters
- Function parameters

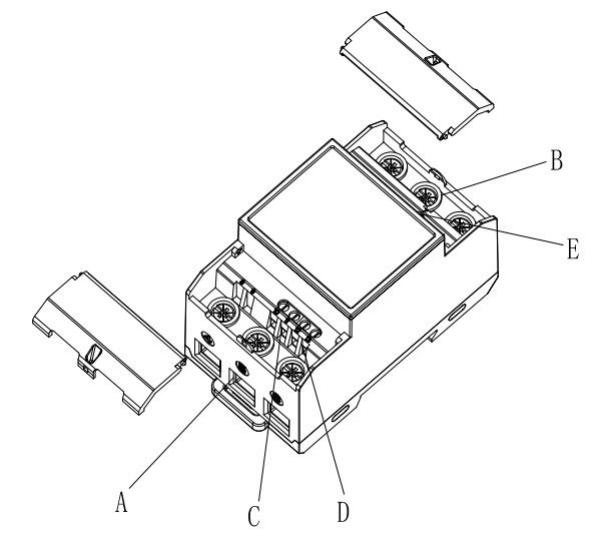

- Structure

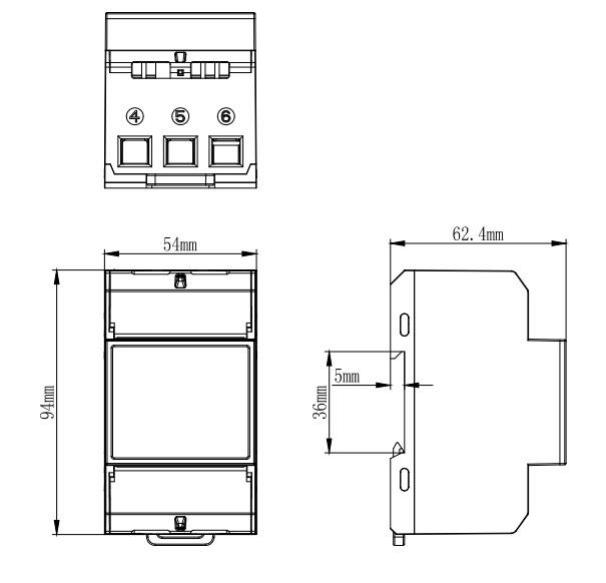

- Dimension
-
voltage connection
direct
rated voltage
120~240VLN/208~415VLL
voltage tolerance
from 0.8 to 1.15 Un
frequency
50/60Hz
-
current connection
direct
basic current
（Ib）
5A
minimum current
（Im in）
0.15A
Maximum current
（Imax）
80A
-
communication method
RS485
protocol
RS485 compatible with Modbus RTU, DLT/645-2007
communication type
bidirectional
RS485 connection type
RS485 configuration parameters
Modbus address( from 1 to 247)
Baud rate（9.6/19.2/38.4/57.6/76.8/115.2 kbps）
Parity check (none/odd/even)
Refresh time
≤100ms
-
Measurement function
Monitor energy consumption, key electrical variables (including active and reactive power, power factor), and calculate current/voltage harmonic content and apparent energy
Measurement method
Forward and reverse metering, net bi-directional; first record single-phase then calculate, then separately account for kwh+ and kwh-, absolute value measurement.
Tariff
TOU tariff, 4 tariffs by default, 8 time periods.
Self-diagnosis
EEP Detection
Event alarm
Monitor variable alarms (kW, A, V L-N, V L-L, PF, Kvar, kVA), with adjustable activation thresholds and delays
Firmware upgrade
Local upgrade
Clock
Network automatic time calibration, temperature compensation.
Other functions
WIRING CHECK,Screen saver function, page filter, and runtime hour counter.
-
-
