This meter has a small size and many functions, and can measure voltage, current, power factor, active power, reactive power, apparent power, electricity, etc. Absolute value measurement, algebra and measurement, only forward and reverse measurement, forward and reverse measurement can be set through communication, suitable for various application scenarios.
DDS353H-3 MID Single Phase Module Din-Rail Mount Multi-tariff factory kWh Meter Modbus-RTU Suppliers
Home / Products / Applications / MID EV charging / DDS353H-3 MID Single Phase Module Din-Rail Mount Multi-tariff factory kWh Meter Modbus-RTU
DDS353H-3
Contact Us
SPEC Download
DDS353H-3 MID Single Phase Module Din-Rail Mount Multi-tariff factory kWh Meter Modbus-RTU
- Features
- Technical Parameters
- Meter Series Details

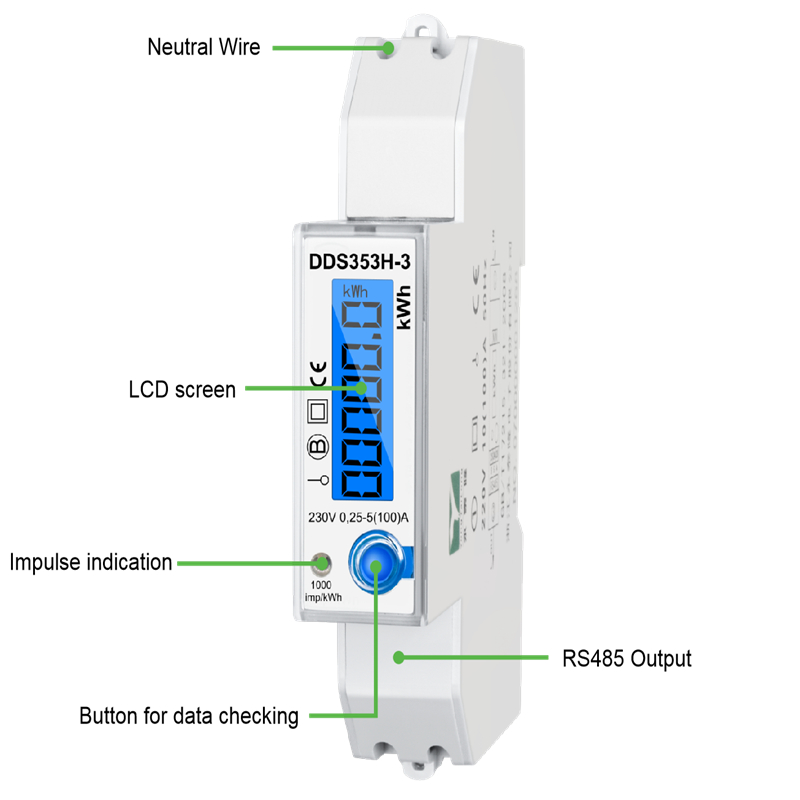

- Description
- Dimensions
- det6
-
- It can read grid parameters, analyze the energy quality and load condition in the certain time period.
- DIN RAIL (Comply to German Industry Standard ) mounted.
- Only 18 mm wdith, but can achieve 100A.
- The meter has Li-battery for RTC. The RTC accuracy is 0.5s every day.
- Blue backlight, which is for easy reading in dark place.
- Do scrolling display for current(A) , voltage(V) , etc.
- Measure the active and reactive energy accurately.
- 2 Modes for data display:
- Auto scrolling mode: the time interval is 5s.
- Button mode by external button for data checking.
- The material of the meter case: PBT resistance.
- Protection Class: IP51 (For indoor usage)
-
Content
Parameters
Standard:
EN50470-1/3
Rated Voltage:
230V
Rated Current:
0,25-5(30)A,0,25-5(32)A,0,25-5(40)A,
0,25-5(45)A,0,25-5(50)A,0,25-5(60)A, 0,25-5(80)A,0,25-5(100)A
Impulse Constant:
100/1000/2000imp/kWh
Frequency:
50Hz
Accuracy Class:
B
LCD Display:
LCD 5+1 = 99999.9kW
Working Temperature:
-25～55℃
Power Consumption:
≤8VA, ≤0.4W
Average Humidity:
≤75% (Non Condensing)
Maximum Humidity:
≤95%
Start Current:
0.004Ib
LED flash:
Impluse indication, pulse width = 90 ms
-
Type
DDS353H-1
DDS353H-2
DDS353H-3
Software Version
V1.0
V1.0
V1.1
Meter Constant
100/1000/2000imp/kWh
100/1000/2000imp/kWh
100/1000/2000imp/kWh
Communication
N/A
RS485, Modbus-RTU
RS485, Modbus-RTU
Setting for
Meter Constant
Only in production
in production or after delivery via RS485
in production or after delivery via RS485
Backlight
Blue
Blue
Blue
Li-Battery
N/A
N/A
YES
Multi-tariff
N/A
N/A
YES
Measurement Mode
Option 1: active and reactive (default)
Option 2: active forward and reverse
-
-
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dds353hmanual.pdf
