It is a simple single phase two module Din-Rail meter with RS485 communication, MODBUS
YTL DIN Rail Single Phase ModBUS protocol Smart Energy Meter Manufacturer Suppliers
Home / Products / multi-function energy meter / YTL DIN Rail Single Phase ModBUS protocol Smart Energy Meter Manufacturer
.png?imageView2/2/format/jp2)
D119001-02
Contact Us
SPEC Download

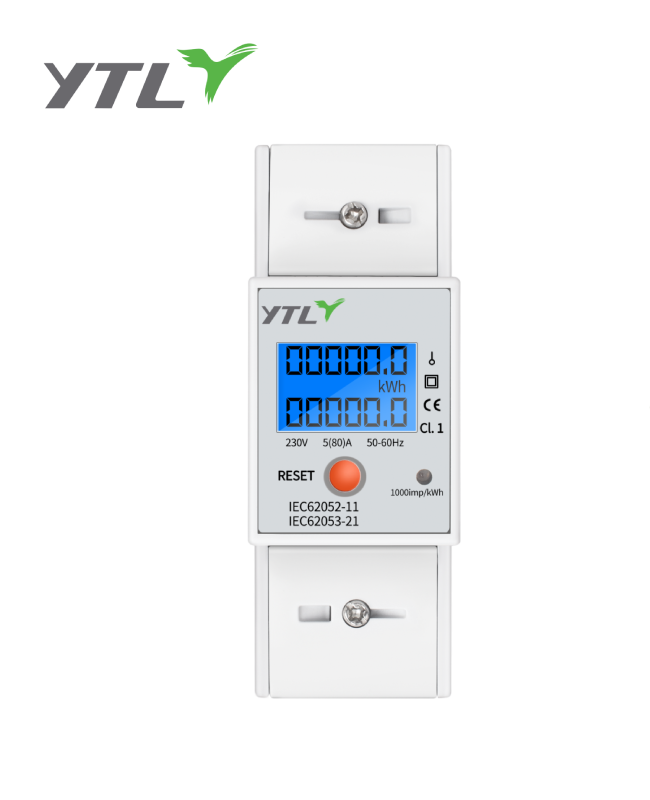

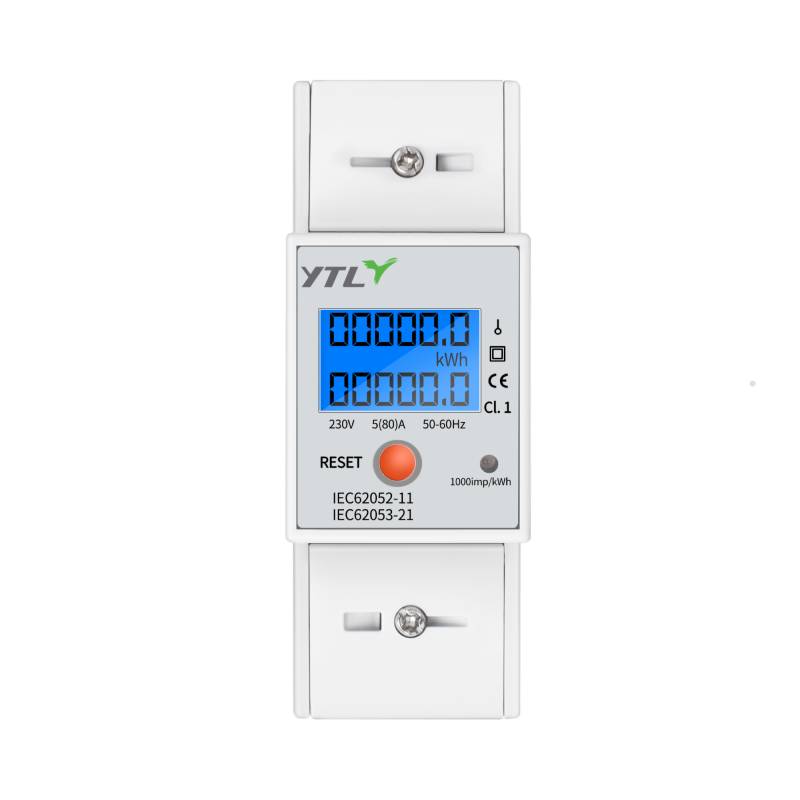

YTL DIN Rail Single Phase ModBUS protocol Smart Energy Meter Manufacturer
- Technical Parameters
- Measurements

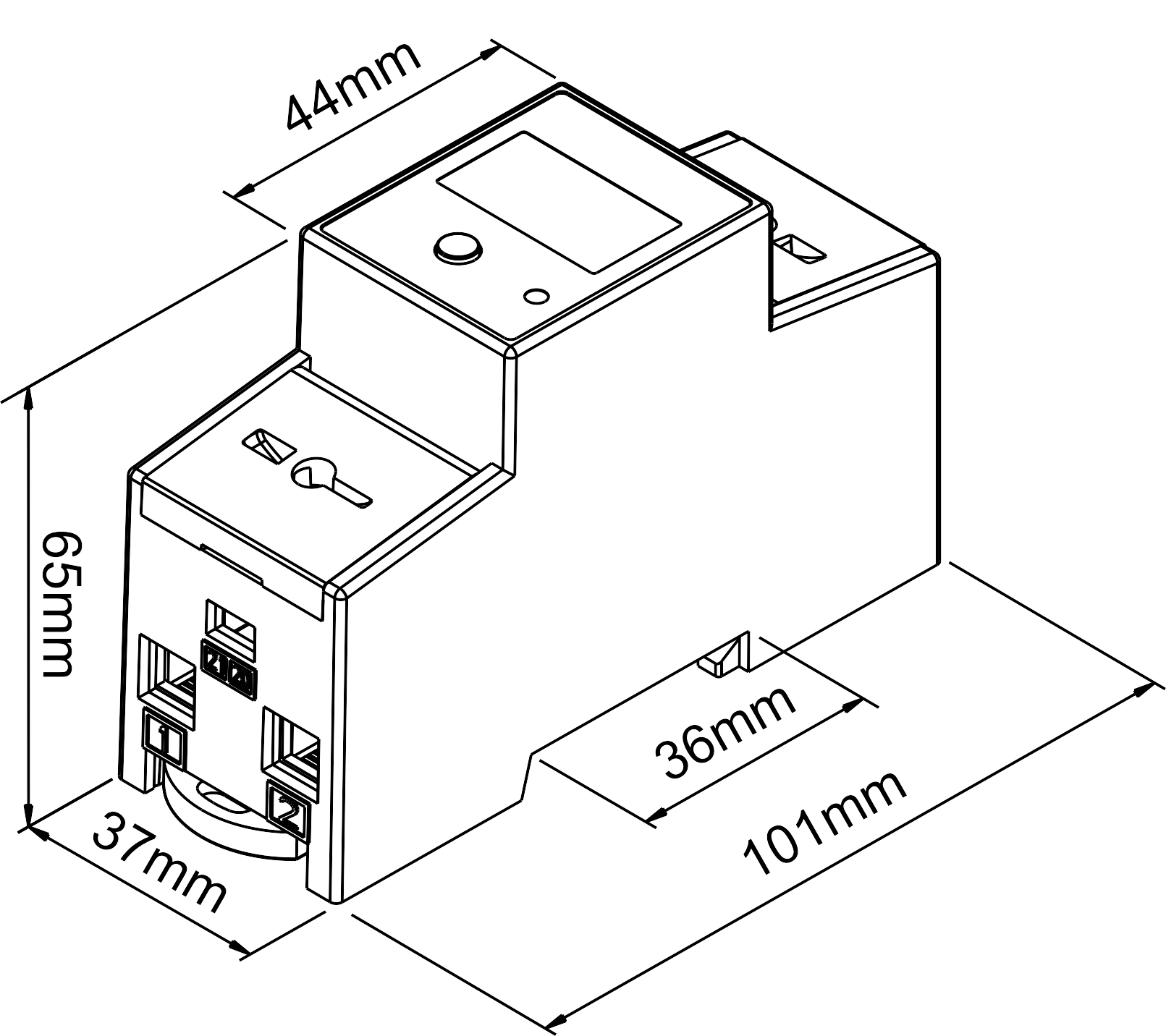

- Meter Dimensions

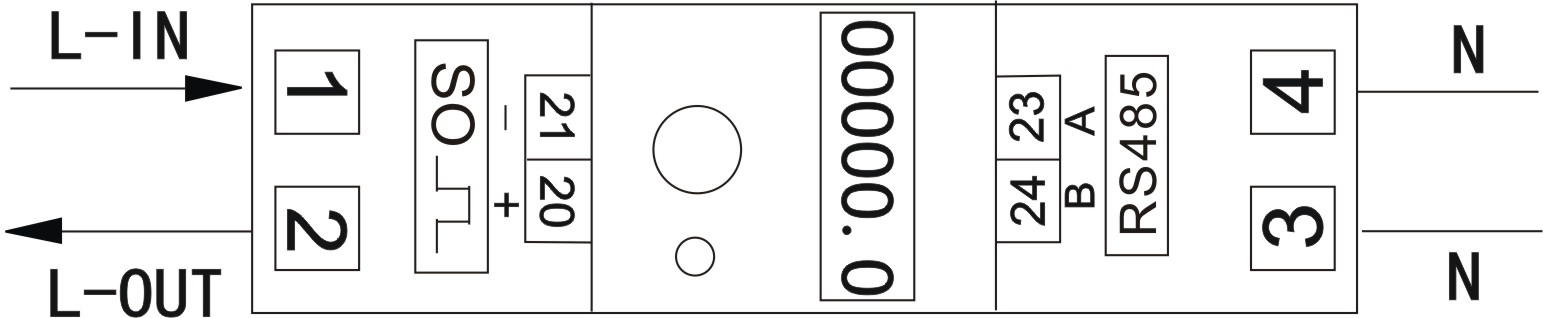

- Diagram for installation
- det6
-
Voltage 230V Current 5(80)A Accuracy class 1.0 Frequency 50-60HZ Impulse constant 1000imp/kWh Display LCD5+1 Starting current 0.4%Ib Operating temperature -20—70℃ Relative humidity ≤75% Standard IEC62052-11 IEC62053-21 IEC62053-31 Baud rate 9600 (Optional) Protection degree IP51 -
●DIN RAILstandard installation size,only 36.5mm width;
●It can be up to 80A;
● Double row display,upper row is forcurrent energy,the below row is fortotal energy;
● LCD display with blue backlight, which is better for data reading in dark or low light conditions;
● Meter has reset function. Press "RESET"button formore than 10s, the upper row data (current energy) will be reset -
.png?imageView2/2/format/jp2)
-
.png?imageView2/2/format/jp2)
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/10/31/d119001-02双节短侧盖带rs485modbus导轨表带背光d119050.doc
-1.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
.jpg?imageView2/2/w/500/h/500/format/png/q/100)
