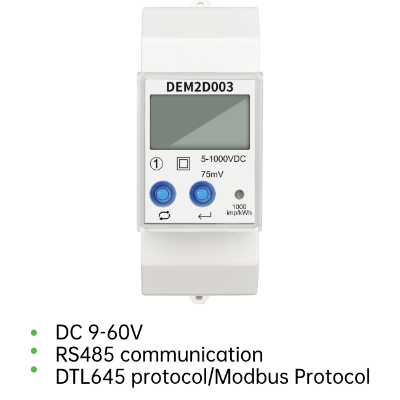

What Is DC Meter? YTL metering DEM2D series

2023-08-01 11:00

DC meter , also known as direct current meter, is an instrument that is commonly used for measuring the magnitude and direction of electric current that flows in a circuit. This type of meter is mainly used to measure the amount of current in a direct current system, which is typically found in batteries, electronic devices, and power supplies.

There are several types of DC meter available on the market today, including analog and digital meters. Analog meters use a moving pointer to indicate the level of current, while digital meters use a digital display to show the current level. Both types of DC meter can be calibrated to read different units of measurement, such as Amperes or Milliamperes.
There are also two types of connections that can be used to connect the DC meter to the circuit being measured: series and parallel. In a series connection, the meter is connected in-line with the circuit, thereby allowing the current to flow through the meter, which causes the pointer or digital display to move proportionally to the amount of current flowing through it. In a parallel connection, the meter is connected in a separate circuit loop to measure the current flow.

Moreover, DC meter is not only used to measure the current but also voltage and resistance as well. In fact, the functionality of a DC meter can be expanded to include the ability to measure both voltage and resistance by utilizing specialized circuits and probes.

The significant advantage of using a DC meter is accuracy. It is vital to have an accurate measurement of current in circuits to prevent damage or malfunctioning to the device connected in the circuit. Therefore, a DC meter is an essential device for engineers, technicians, and researchers, making precision measurements in different applications such as automotive, energy industry, and consumer electronics.

Overall, DC meter iscrucial in measuring the current, voltage, or resistance in electrical circuits. Depending on the application and electrical equipment used, engineers and technicians select the right type of DC meter to obtain accurate measurements. DC meters will continue to play a vital role in electronic engineering in the future's increasingly digital world.
