Core Differences Between DC Watt-Hour Meters and AC Watt-Hour Meters: From Operating Principles to Application Scenarios

2026-01-02 10:16

In the modern field of electric energy metering, DC watt-hour meters and AC watt-hour meters, as two basic types of electric energy metering devices, each undertake unique missions. Although their ultimate goal is to accurately measure power consumption, there are fundamental differences in their internal operating principles, technical designs, and applicable scenarios. Understanding these core differences is of important guiding significance for the correct selection and use of watt-hour meters, as well as for ensuring the efficient and reliable operation of various power systems.

I. Differences in Current Nature Determine Distinct Fundamental Operating Principles

The most essential difference between DC watt-hour meters and AC watt-hour meters stems from the different nature of the currents they measure. Direct current (DC), with constant direction and magnitude, is like a steadily flowing river; alternating current (AC), on the other hand, sees its direction and magnitude change periodically over time, more akin to regularly pulsating tides. This fundamental difference leads to a divergence in their measurement principles.

AC watt-hour meters usually adopt a watt-hour meter structure based on the principle of electromagnetic induction, or use electronic technology to integrate the product of instantaneous voltage and current. However, their algorithms must take into account the power factor, a characteristic unique to AC, and handle the phase difference between voltage and current to accurately calculate the actual consumed active power.

In contrast, the measurement task of DC watt-hour meters is theoretically more straightforward. Since the voltage and current of DC have constant directions and are in phase, its power calculation is simplified to the direct product of DC voltage and DC current. Nevertheless, achieving high-precision DC measurement is quite challenging in practice, especially in high-current and wide-range applications. It requires technologies such as precision shunts or magnetic modulation to accurately capture DC signals, avoiding losses and errors during the measurement process.

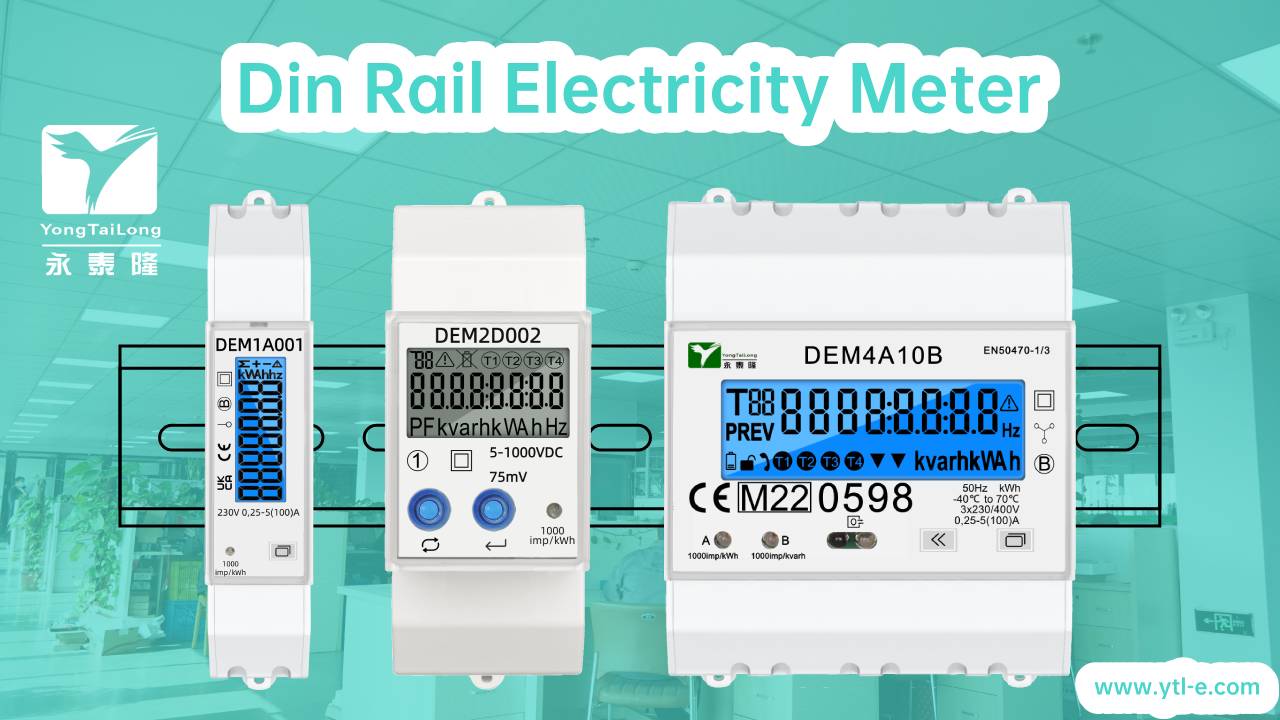

II. Different Focuses in Internal Structure and Technical Design

Based on the differences in measurement principles, DC watt-hour meters and AC watt-hour meters exhibit distinct focuses in their internal structure and technical design.

The design of AC watt-hour meters needs to focus on the accurate sampling and analysis of AC waveform parameters, including effective value calculation, frequency tracking, and harmonic impact handling. Their interiors typically contain complex signal conditioning circuits and computing units specially designed to process AC parameters. Modern intelligent AC watt-hour meters also often integrate advanced functions such as power factor measurement and reactive power metering.

The structure of DC watt-hour meters, on the contrary, is developed around the stable and accurate measurement of DC parameters. Since there are no concepts of phase and frequency in DC measurement, the core of its design lies in maintaining the stability of the measurement reference over a wide temperature range and during long-term operation. DC watt-hour meters usually adopt precision sampling resistors with high stability and low temperature coefficient, and are equipped with advanced temperature compensation circuits to counteract the impact of environmental changes on measurement accuracy. In terms of anti-interference, DC watt-hour meters need to specially guard against ripple interference and common-mode noise that may occur in DC systems, ensuring the output of reliable metering data even in complex electromagnetic environments.

III. Clear Division in Application Scenarios and Industry Fields

The differences in operating principles and structural designs naturally lead to a relatively clear division of application scenarios between DC watt-hour meters and AC watt-hour meters.

As the mainstream metering equipment in the current power system, AC watt-hour meters are applied in almost all general power fields. From power plants and power transmission and distribution networks to household electricity consumption, from industrial production to commercial operations, all occasions powered by AC grids require AC watt-hour meters for electric energy metering. They are the ubiquitous "electric energy accountants" in the modern AC power world.

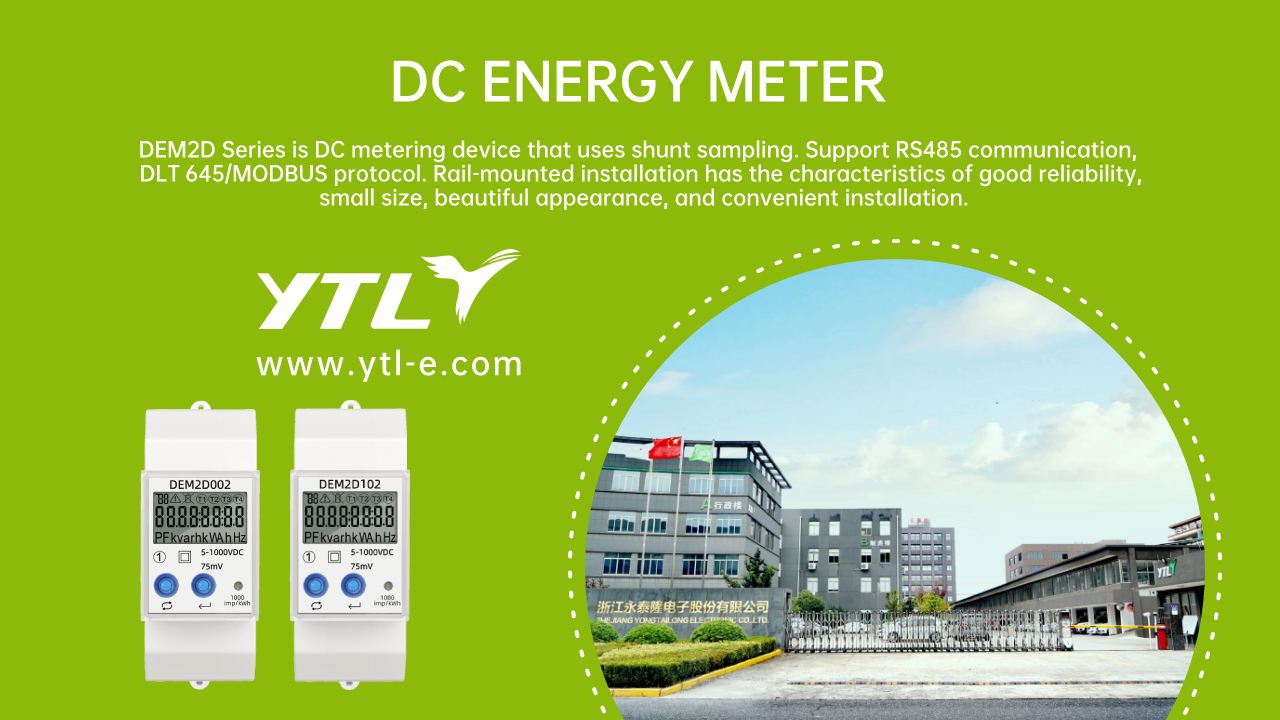

DC watt-hour meters, meanwhile, are dedicated to specific DC power supply and application fields, and their role is equally indispensable. In the booming photovoltaic power generation industry, DC watt-hour meters are used to measure the DC power generated by solar panels; in DC fast charging piles for electric vehicles, DC watt-hour meters directly and accurately measure the DC power charged into vehicle batteries; in rail transit, telecommunications base stations, electrochemical industries, as well as the emerging DC microgrids and energy storage systems, DC watt-hour meters are key devices for energy management, cost accounting, and system control. The common feature of these application scenarios is that their core energy form is DC, where direct metering is the most accurate and economical solution.

In summary, DC watt-hour meters and AC watt-hour meters are not simply interchangeable, but two parallel technical routes developed based on different current properties and application requirements. AC watt-hour meters are the standard configuration in AC-dominated public power systems, while DC watt-hour meters are irreplaceable precision measurement tools in specific DC energy systems and electrical equipment. Recognizing the core differences between the two and selecting the appropriate type of watt-hour meter according to the essential characteristics of the power consumption system is a solid foundation for ensuring accurate metering, efficient system operation, and fair trade settlement.
