YTL DDS353B Active din-rail-singlephase Electricity Meter Suppliers

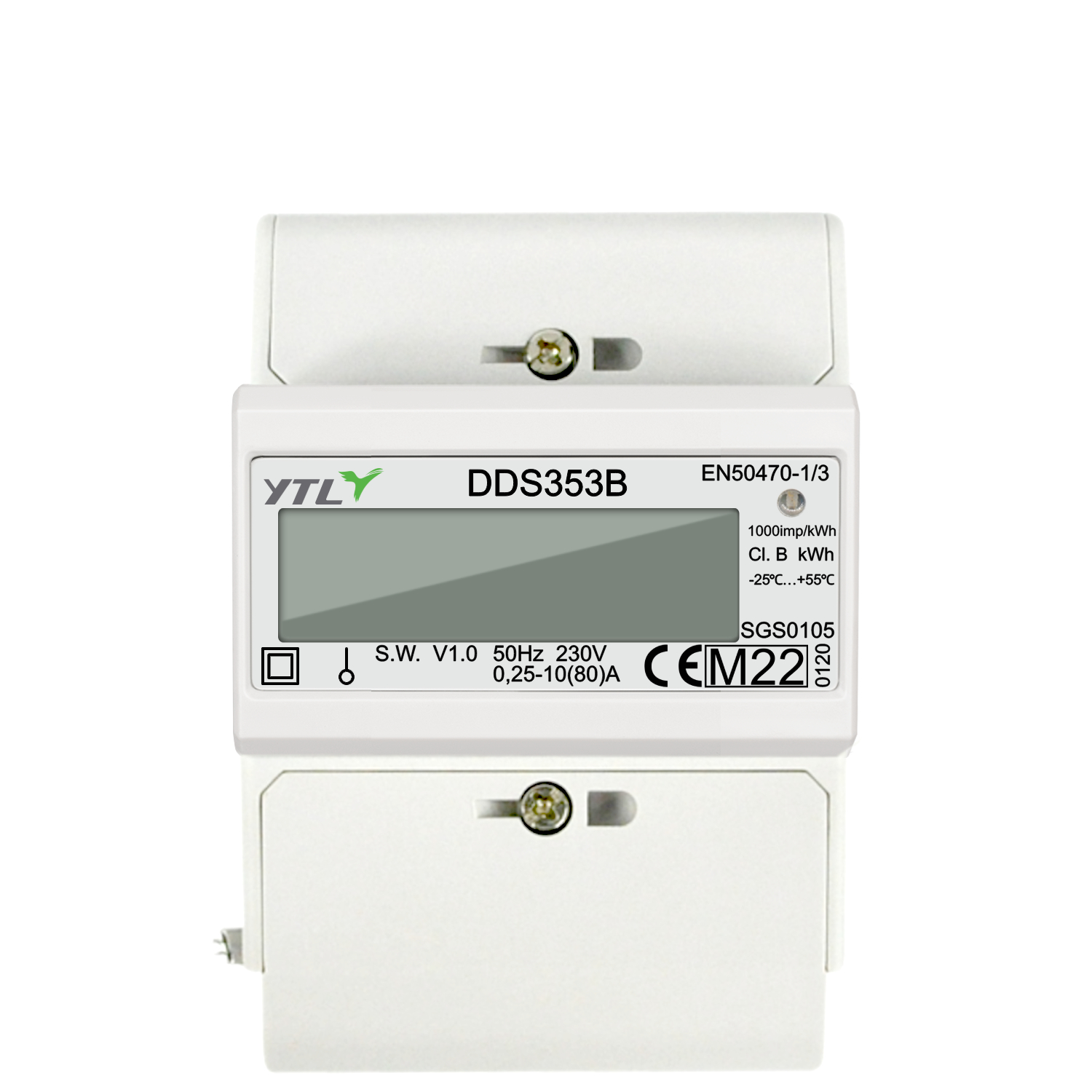

YTL DDS353B Active din-rail-singlephase Electricity Meter
Single phase four wire din rail meters with LCD display. LCD has passed the performance test of double 85(T. 85℃，H. 85%), with long life and high display definition. The power terminal is designed with a long terminal cover to prevent potential safety hazards caused by copper exposure of the power input and output lines.
- Technical Parameters

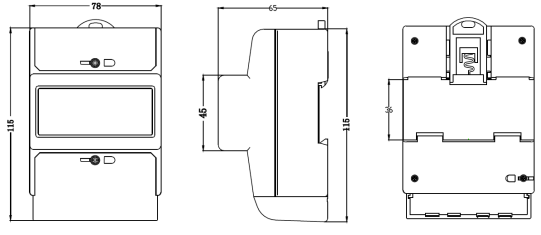

- Meter Dimensions

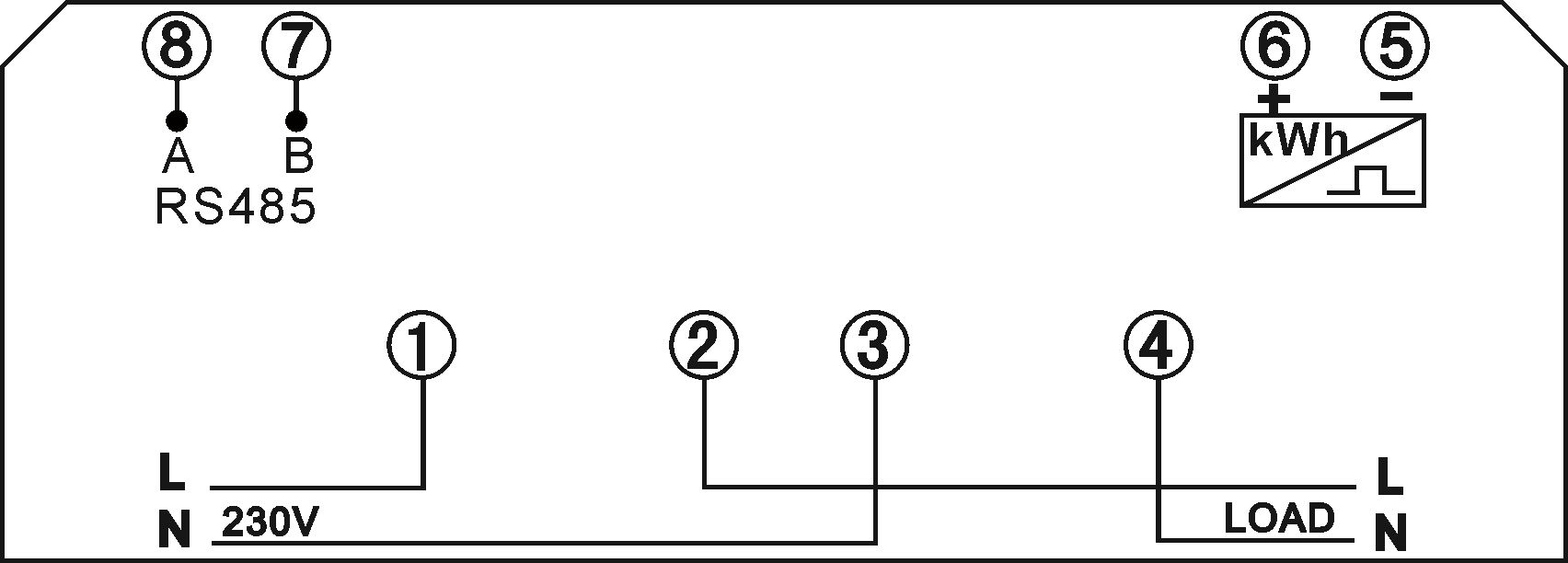

- Diagram for installation
- det6
-
Voltage 230V Current 0.25-5(80)A Accuracy class B Standard EN50470-1/3 Frequency 50Hz Impulse constant 1600imp/kWh Display LCD 5+2 = 99999.99kWh Power consumption ≤1W (When 220V 20A) Starting current 0.004Ib Creep logical design of Anti-creep Temperature range -25~55℃ Relative Humidity ≤95% -
.png)
Height 115mmWidth 78mm
Depth 65mm
Weight 0.2661kg(Net)
-
