Established in 2000, Zhejiang Yongtailong Electronic Co., Ltd. is located in the center of Shanghai, Hangzhou and Suzhou cities. YTL is a professional China YTL DEM4B Series Digital Power ENERGY Meter Suppliers and YTL DEM4B Series Digital Power ENERGY Meter Company. With more than 20 years of energy metering experience, we devote ourselves to providing competitive projects and creating value for customers. YTL was one of the first companies in the domestic market with which had an internal R&D department as well as international sales business. Since our foundation in 2000 we have grown to a manufacturer which complies and meet to many specifications from our national and international partners. At present our export volume makes us a leading company for technology and product export to more than 50 countries throughout the world. With provincial high-tech enterprise R&D center, YTL is the Top 100-enterprise with most investment value in Zhejiang. And“Yongtailong”is the famous brand of Zhejiang. For any new products of customers, we will communicate with customers very professionally, listen to their opinions and give useful suggestions to ensure that excellent quality products are made.
YTL DEM4B Series Digital Power ENERGY Meter Suppliers
YTL DEM4B Series Digital Power ENERGY Meter
The DEM4B Series Digital Power Meter works directly
This meter will be applied the MID B&D Certified by SGS,
- Measurements
- Product Description

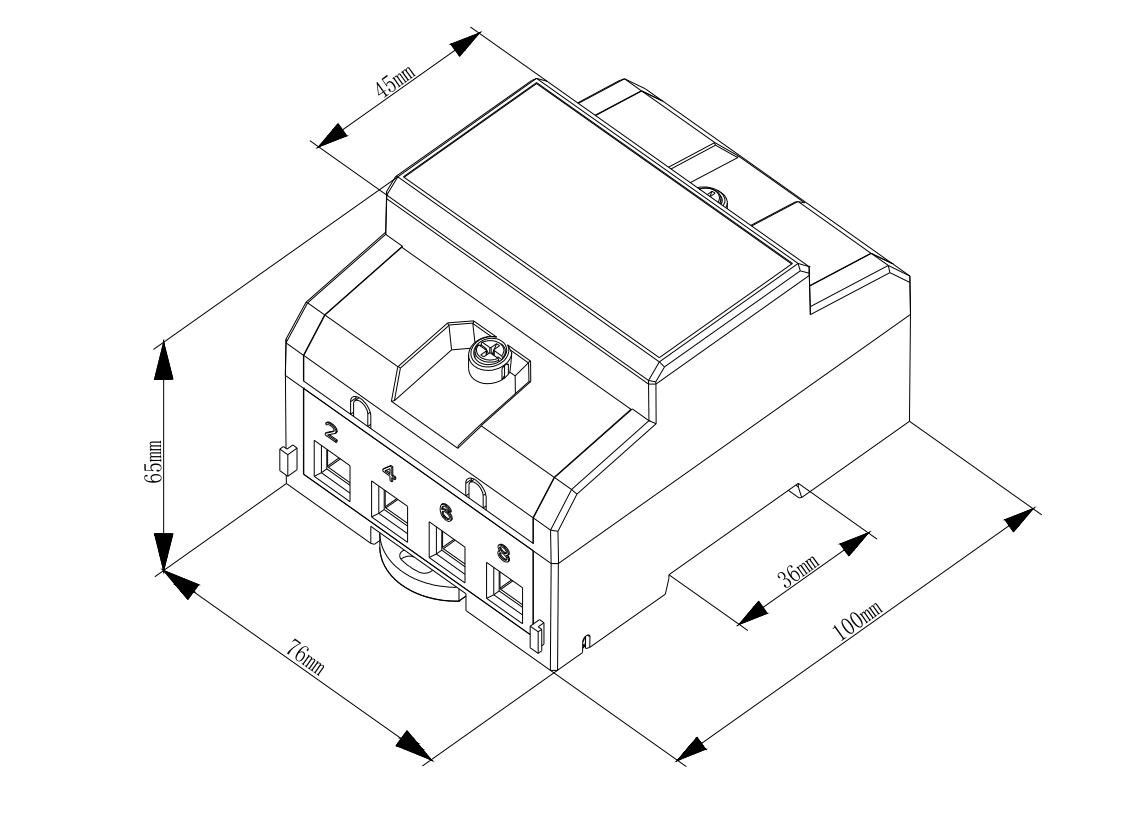

- Meter Dimensions

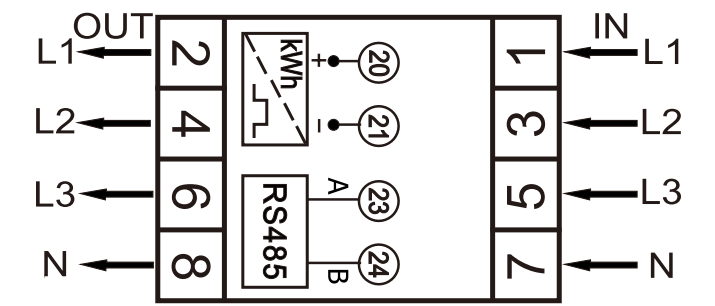

- Diagram for installation
-
Standard:
EN50470-3 2022
EN IEC 62053-21:2021
IEC 62052-11:2020
IEC62052-31 2015
Rated Voltage:
3*230/400V
Rated impulse voltage
6kv
Rated Current:
0.25-5(80)A
Impulse Constant:
1000imp/kWh(LED)
Frequency:
50Hz
Accuracy Class:
Active 1.0
LCD Display:
LCD 6+2
Power Consumption:
≤2W/10VA
Current Consumption:
≤1W
Maximum Humidity:
≤95%
Start Current:
0.4% （20mA）
Case Protection
IP51 indoor
-
DEM4B Series
DIN Rail Three phase four modular energy meter
DEM4B409 (product code D519168): IR+Power outage display+LCD backlight+SO output (variable constant)+ with different measurements
DEM4B009 (product code D519171):IR+SO output (variable constant)+ with different measurements
DEM4B009-1(product code D519172):IR+LCD backlight+SO output (variable constant)+ with different measurements
DEM4B409-1(product code D519169):IR+Power outage display+SO output (variable constant)+ with different measurements
DEM4B403(product code D519167):RS485+Power outage display+LCD backlight+SO output (variable constant)+ with different measurements
DEM4B003(product code D519173):RS485+SO output (variable constant)+ with different measurements
DEM4B003-1(product code D519174):RS485+LCD backlight+SO output (variable constant)+ with different measurements
DEM4B403-1(product code D519170):RS485+Power outage display+SO output (variable constant)+ with different measurements
-
-
DEM4B409
DEM4B403
Welcome To A National High-tech Enterprise
-
2000
Established In
-
500+
Employees
-
60+
Export Country
-
500+
Design Right Patent
