CT energy meter installation in 7 steps, energy-saving, worry free, and safer

In industrial, commercial, and even household electricity scenarios, CT energy meters have become the core tool for energy management due to their high-precision measurement, large current measurement, intelligent monitoring, and long-term stability. However, the standardization and attention to detail in the installation process directly determine whether the equipment performance can be maximized.

This article focuses on 7 key steps to teach you how to efficiently install and debug CT energy meters, avoid hidden dangers, improve energy efficiency, and deeply analyze how their technical advantages can be transformed into practical value!

Step 1: Choose the right phenotype - environmental adaptation is the foundation for efficient operation

CT energy meters are usually installed in two ways: suspended and rail mounted

Hanging type: suitable for spacious distribution cabinets or independent wall installations, with the advantages of good heat dissipation performance and easy maintenance. It is commonly used in industrial scenarios such as factories and substations.

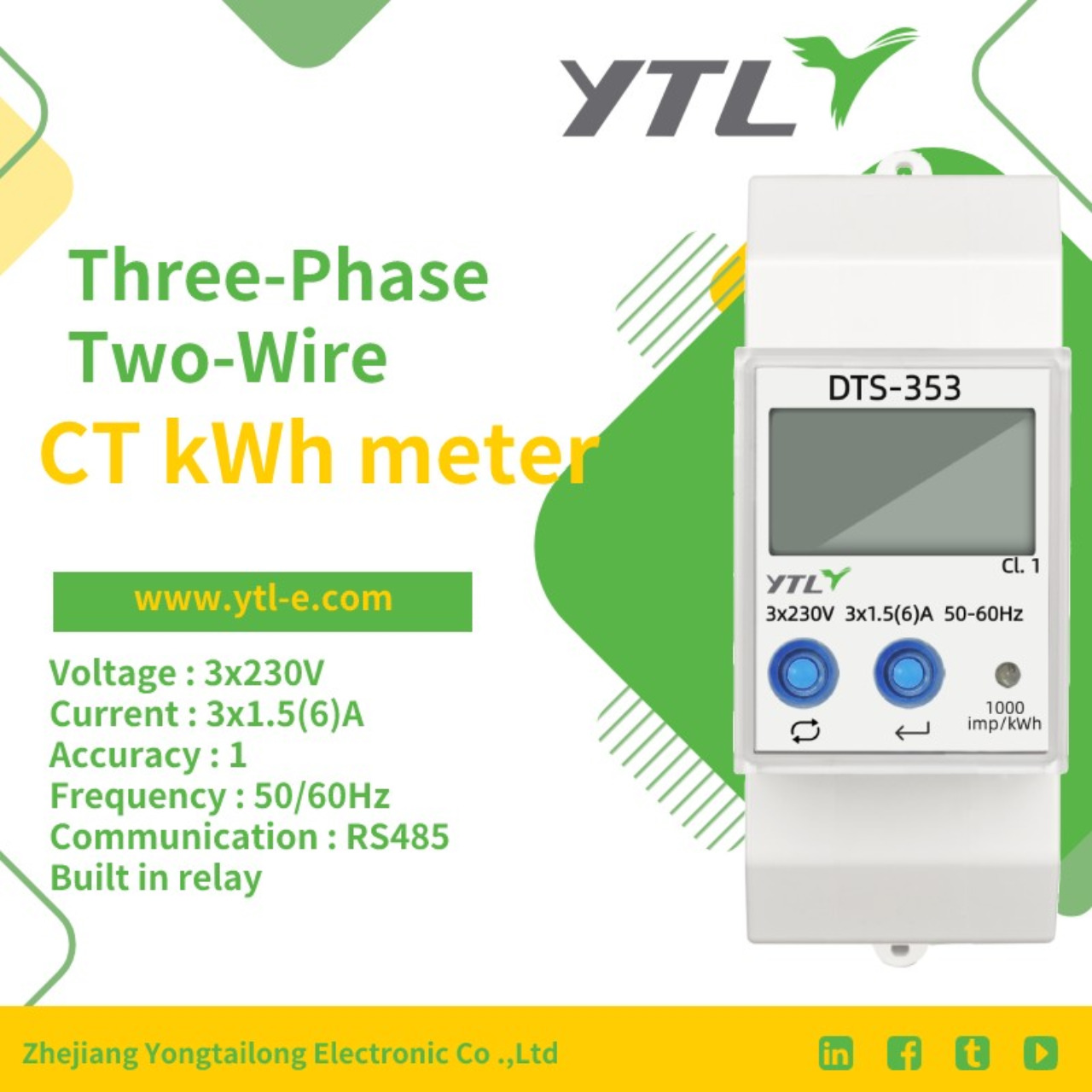

Rail type: Compact in size, can be directly embedded into standard 35mm rails, suitable for smart electrical boxes or household distribution cabinets with limited space, increasing installation efficiency by more than 50%.

Step 2: Accurately match current transformers - the key to an error rate below 0.5%

The selection of current transformers (CTs) directly affects the measurement accuracy and should follow two principles:

Range matching: Select CT specifications based on the  load current on site. For example, when the actual peak current is 500A, it is recommended to use a 600:5A transformer to avoid measurement distortion caused by overload.

Accuracy level: CT with a precision of 0.5 or higher must be selected to ensure coordinated control with the error of the energy meter, and the overall system accuracy reaches the 1.0 level standard.

Why emphasize 0.5 level CT?

If a low precision transformer is used, even if the accuracy of the energy meter itself is high, the overall system error may still exceed 2%, resulting in a large error in the monthly average electricity bill! The high-precision CT scheme matched with the CT energy meter ensures precise measurement.

Step 3: Ratio setting - the core operation of making data "speak the truth"

After installing the CT, it is necessary to input the CT transformation ratio (such as 600:5A corresponding to a transformation ratio of 120) on the energy meter parameter interface. Operation points:

Check the nameplate information: The transformation ratio must be consistent with the CT body label to avoid manual input errors.

CT meters have password protection for setting the transformation ratio. Only when the password is entered correctly can the transformation ratio be set to prevent unauthorized personnel from making mistakes.

Step 4: Wiring specifications - phase correspondence determines system reliability

Wiring errors can make to measurement deviation in mild cases and short circuit risk in severe cases! Must strictly follow:

Voltage and current phases correspond one-to-one: the A-phase voltage line is connected to the A-phase CT, and the B and C phases are the same to avoid phase misalignment.

Tighten terminal pressure: Use a torque screwdriver to ensure that the terminal pressure meets the standard (usually 0.5~0.8N · m), to prevent poor contact from causing CT open circuit.

CT energy meter safety design:

Color code guidance: The wiring terminals use yellow, green, and red colors to distinguish the ABC three phases and reduce the risk of misconnection.

Step 5: Communication Configuration - Connect the "Last Mile" of Intelligent Management

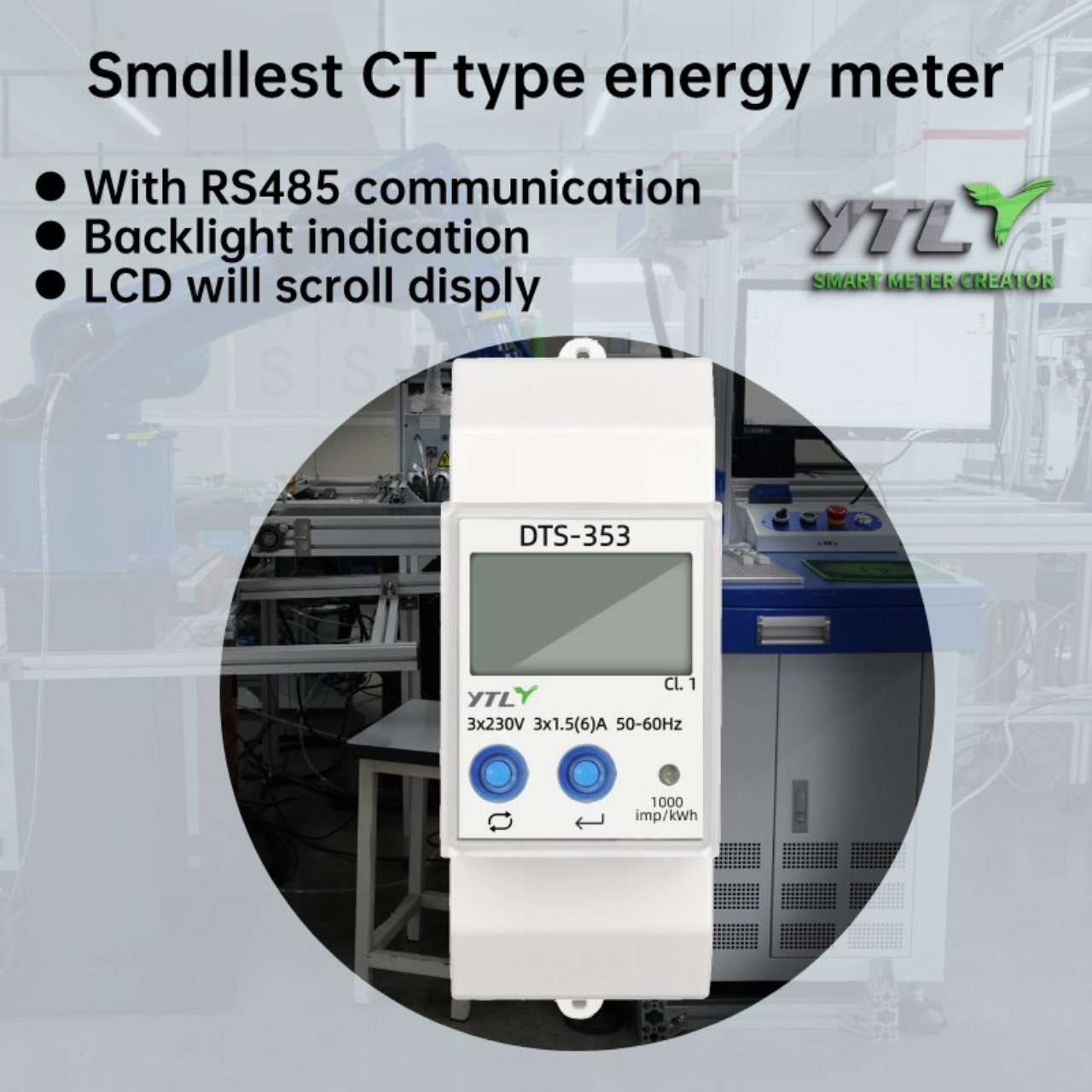

A CT energy meter that supports RS485 communication requires the following configuration to be completed:

Wiring specification: RS485 adopts shielded twisted pair, with A/B line sequence consistent with the host, and 120 Ω terminal resistors are installed at both ends of the bus.

Protocol matching: Set communication protocols such as Modbus RTU and DL/T645 to ensure seamless integration with the upper computer system.

Advantages of CT energy meters in the Internet of Things:

Cloud data synchronization: After connecting to the energy management platform, key indicators such as electricity load and power factor can be viewed in real time.

Remote meter reading: Automatically generate daily/monthly/annual electricity consumption reports, saving 90% of manual reading costs.

Step 6: Safety acceptance - the ultimate defense line for eliminating hidden dangers

Before powering on, it is necessary to perform three checks:

Insulation test: Use a 500V megohmmeter to measure the insulation resistance of the circuit, ensuring that the value is greater than 10M Ω.

Grounding verification: PE protection grounding wire resistance ≤ 4 Ω, to prevent lightning strikes and leakage risks.

Phase verification: Use a phase detector to verify whether the voltage is consistent with the CT polarity.

Step 7: Power on debugging - Verify the full functional operation of the system

After the  power on, confirm according to the process:

Basic function: Whether the screen displays voltage, current, power and other data normally.

Communication testing: Real time data is read through the upper computer or mobile app to verify communication stability.

Measurement observation: Check if the pulse indicator light of the CT meter is flashing normally.

CT energy meters are not only auditors of electricity bills, but also the "smart brain" for enterprises to reduce costs and increase efficiency. Choose high-precision, maintenance free, and strong communication CT energy meters to inject long-term value into your electrical system from the  step of installation!
