This meter is a three phase four wire with RS485 din rail electronic meter. This meter
light weight and easy installation.
YTL DTS353F-3 DIN Rail Three Phase 4 Model Muliti-Function Electricity Meter Suppliers
Home / Products / multi-function energy meter / YTL DTS353F-3 DIN Rail Three Phase 4 Model Muliti-Function Electricity Meter
.png?imageView2/2/format/jp2)
D519024-04
Contact Us
SPEC Download

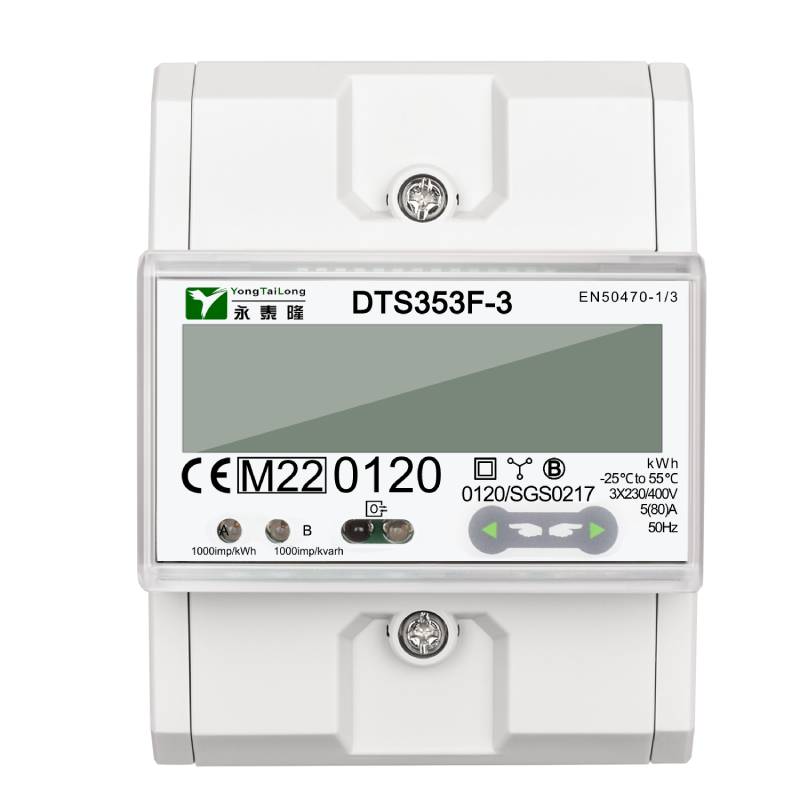

YTL DTS353F-3 DIN Rail Three Phase 4 Model Muliti-Function Electricity Meter
- Technical Parameters
- Features

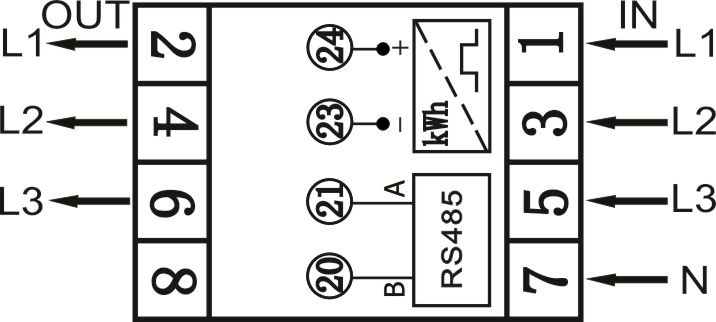

- Connection Diagram
- det6
-
Voltage 3*230/400V Current 5(80)A Accuracy class B Standard EN50470-1/3 Frequency 50Hz Impulse constant 1000imp/kWh, 1000imp/kVarh Display LCD 6+2 Starting current 0.004Ib Temperature range -20～70℃ (Non Condensing) Average humidity value of year 85% -
Measurement function
● It has three phase active/reactive energy and positive and negative measurement, four
tariff(optional).
● It can be setted 3 measurement modes according to the synthesis code.
● Maximum demand calculation.
● Holiday Tariff and Weekend Tariff Setting(optional).
Communication
●It supports IR(near infrared) and RS485 communication(optional). IR complies with EN62056(IEC1107) protocol, and RS485 communication use the MODBUS protocol.
- DTS353F-3: IR communication, RS485 MODBUS, Multi-tariff function
Display
●It can display the total energy, tariff energy, three phase voltage, three phase current, total/three phase power, total/three phase apparent power, total/three phase power factor,
frequency, pulse output, communication address, and so on(details please see the display
instruction).
Button
●The meter has two buttons, it can be displayed all the contents by pressing the buttons. Meanwhile, by pressing the buttons, the meter can be set LCD scroll display time.
●It can be set the automatic display contents through IR.
Pulse output
● Set 1000/100/10/1, total four pulse output modes by communication.
-
