It is a din rail meter with kWh measurement function, LCD display.
More options to meet different requirements from market !
YTL MAX 80A Din-Rail 1 Phase 1W Digital Electric Energy Meter Suppliers
Home / Products / electronic energy meter / YTL MAX 80A Din-Rail 1 Phase 1W Digital Electric Energy Meter
D112065
Contact Us
SPEC Download
YTL MAX 80A Din-Rail 1 Phase 1W Digital Electric Energy Meter
- TechnicalParameters
- Features

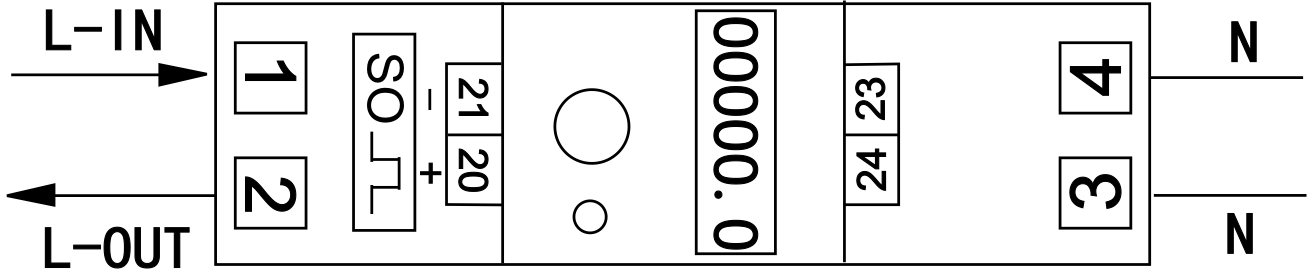

- ConnectlonDiagram
- MeterDimensions
- ImpulseConnection
- det6
-
Voltage 230V Current 5(65) A Accuracy B Standard IEC62052-11, IEC62053-21 Frequency 50/60Hz Impulse Constant 1000imp/kWh Display LCD5+1digits=99999.9kWh with backlight Power Consumption ≤8VA, ≤0.4W Start Current 0.004Ib Temperature Range -20～65℃ Flashing Red Impulse indication Average humidity value of year 75% Maximal value 95% -
● two kWh measurement: total kWh measurement and one period kWh measurement.
● DIN RAIL standard installation size.
● Only 36mm wide, can up to 80A.
● Material of Meter housing: ABS fire resistant.
● Degree of Protection: IP51 (indoor meter).
-
-
\
Height 101mm
Width 37mm
Depth 65mm
-
It requires an experienced electrician or professional to install energy meter, and the user guide shall be completely read;
During the installation process, if the meter case has obvious damage marks caused by a violent impact or fall, please do not install, or power up, and please promptly contact with us;
The energy meter is inspected before leaving the factory and can be installed and used directly; The meter should be installed in an indoor or outdoor meter box.The mounting base shall be fixed on a sturdy and refractory wall without corrosive gas in the air;
The mounting base shall be fixed on a sturdy and refractory wall with no corrosive gas in the air; The meter shall be wired according to the wiring diagram on terminal case, preferably by copper wire or copper wiring head.
- https://hqcdn.hqsmartcloud.com/ytl-e/2022/07/06/dds353lmanual.pdf
